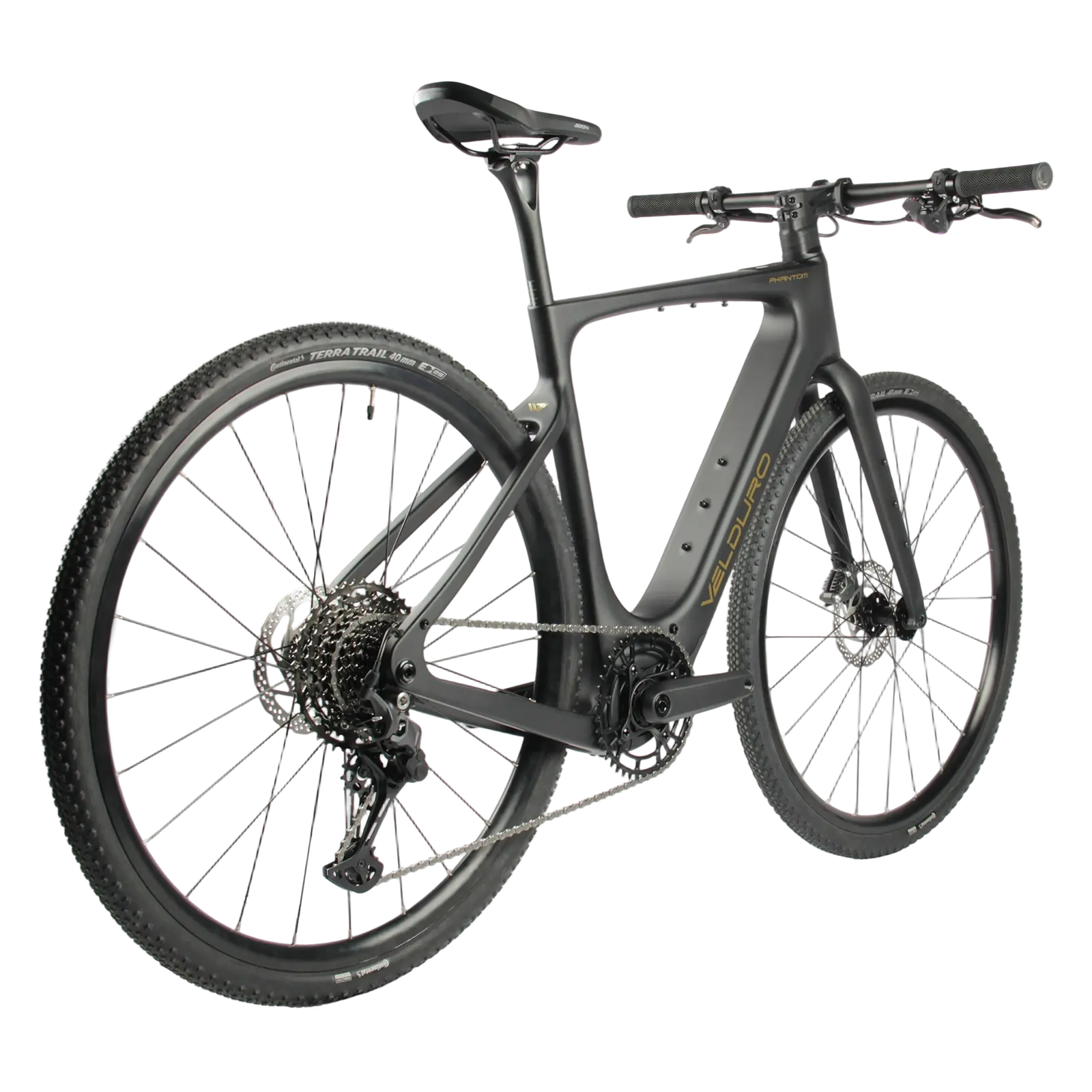

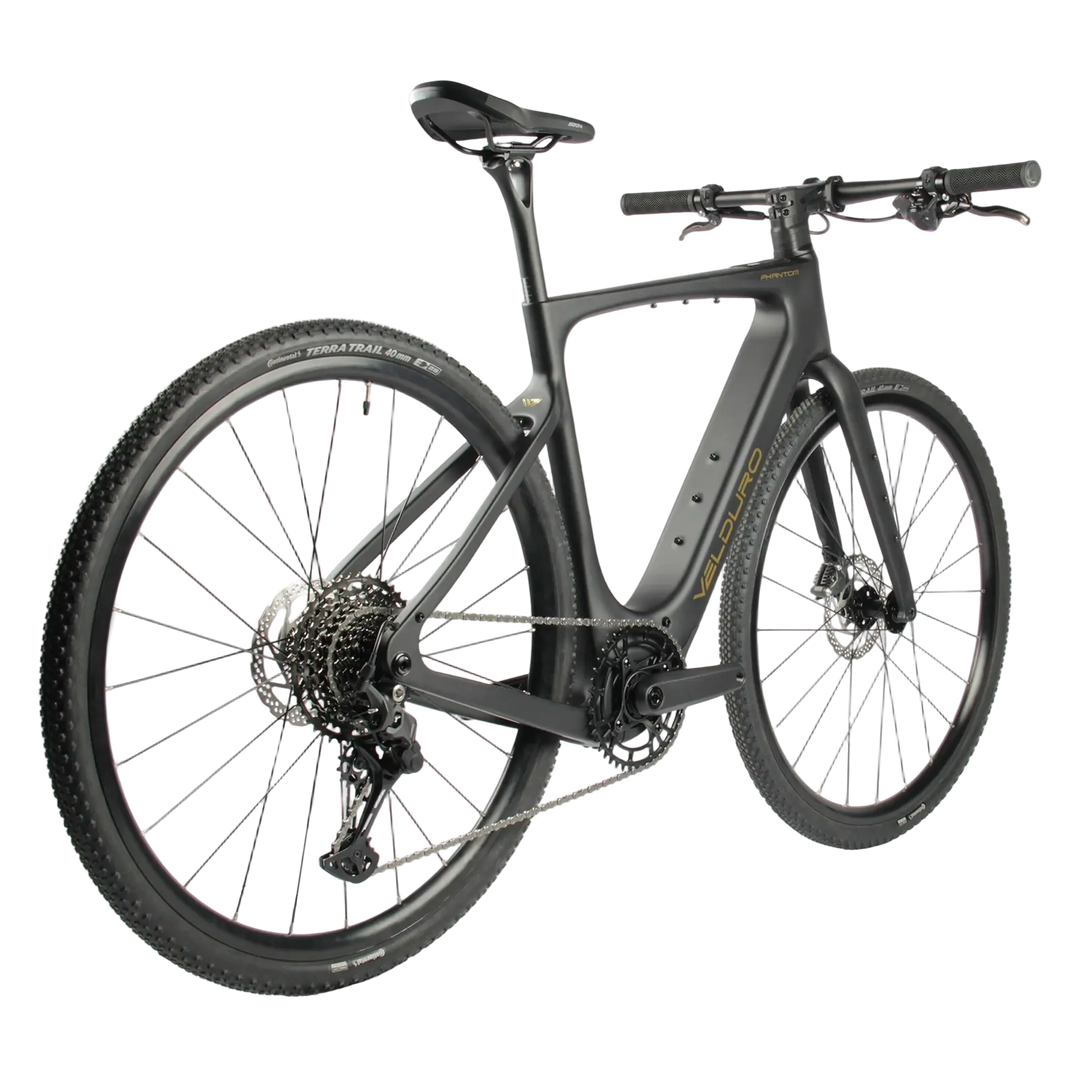

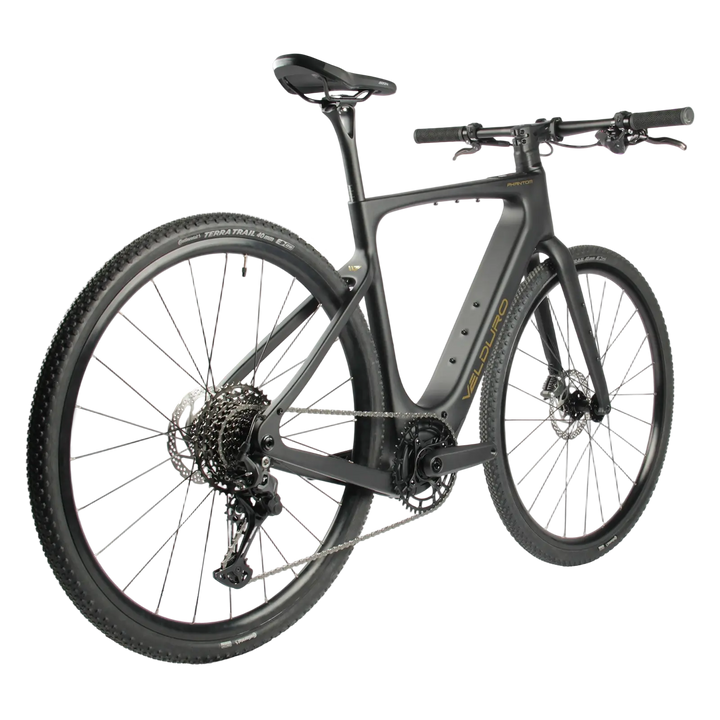

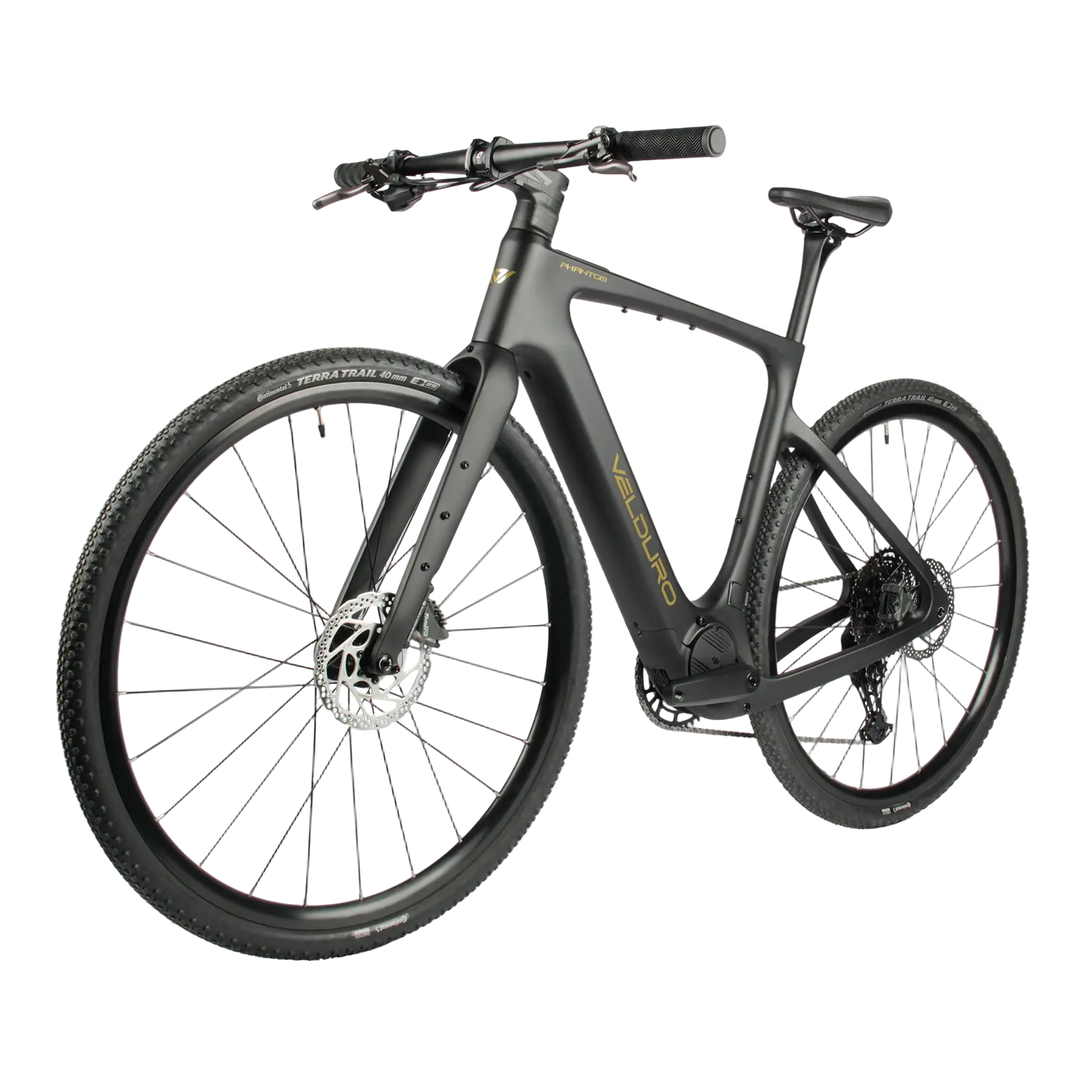

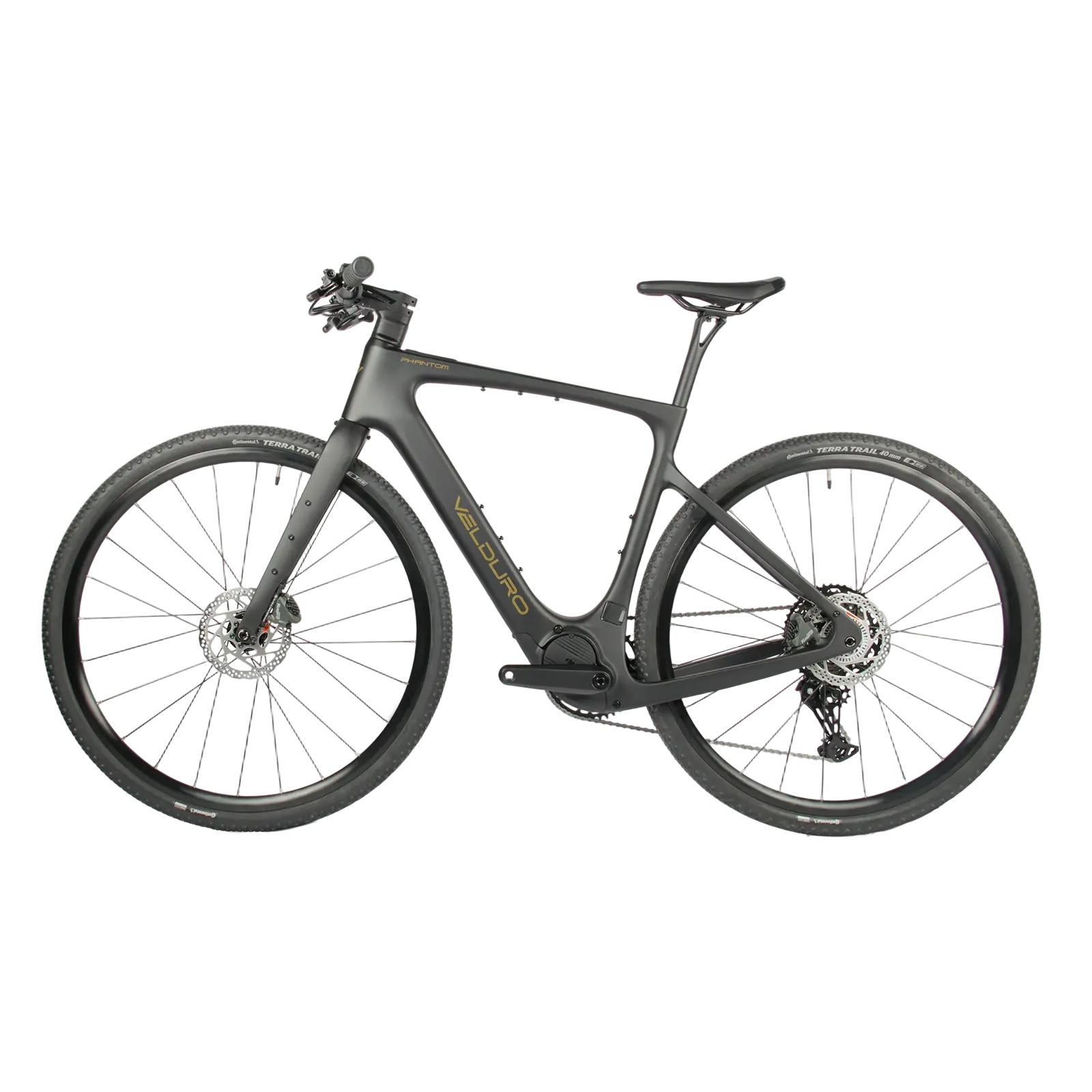

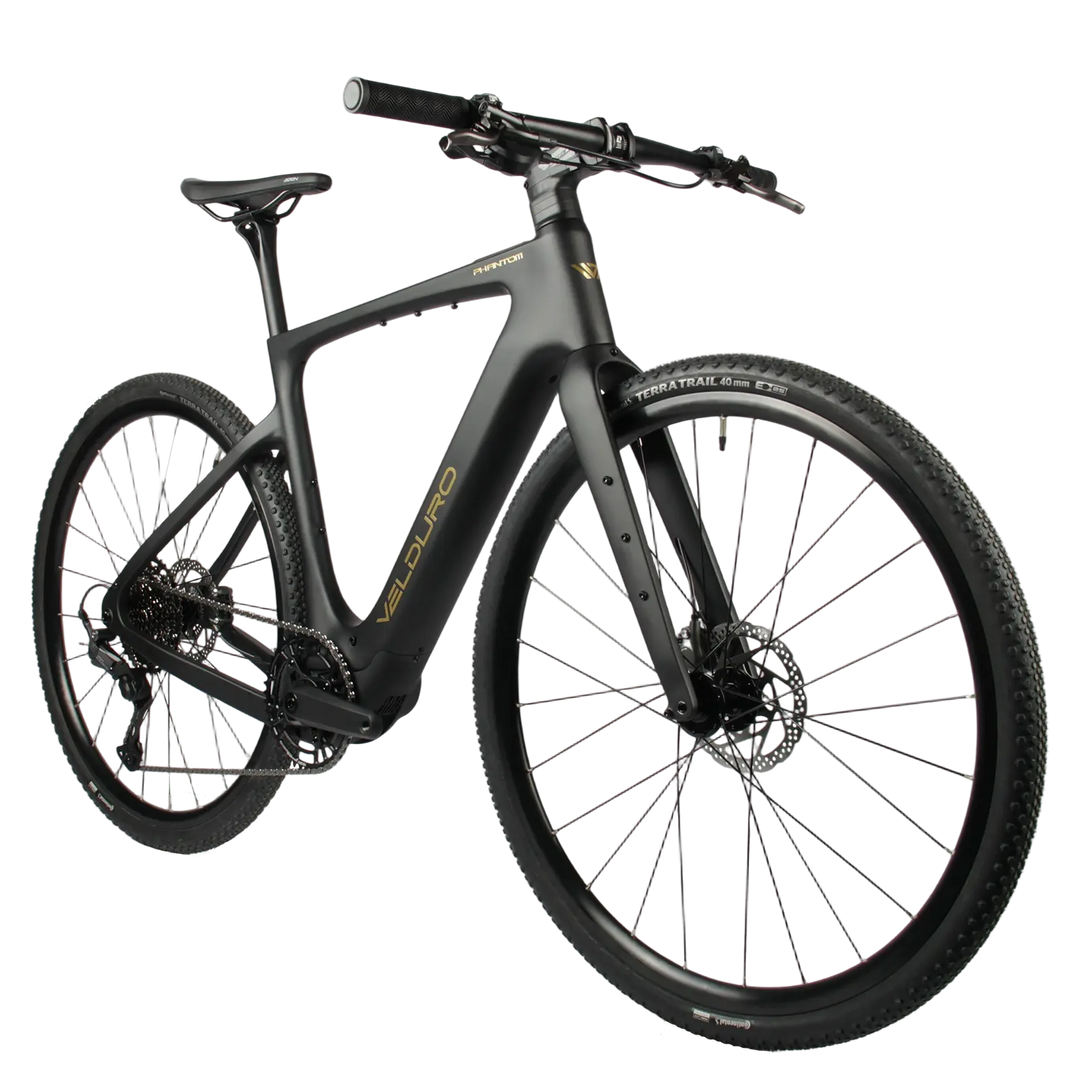

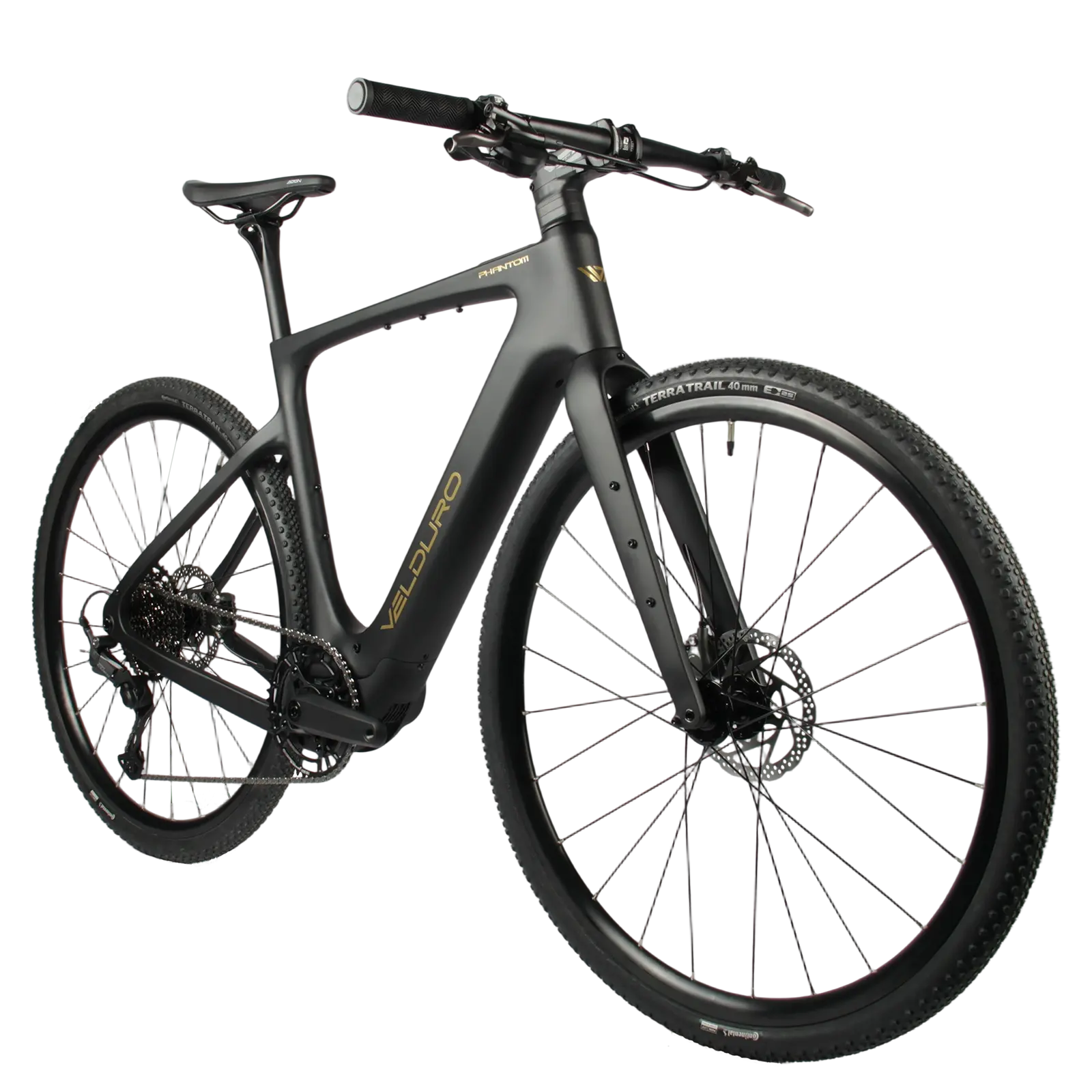

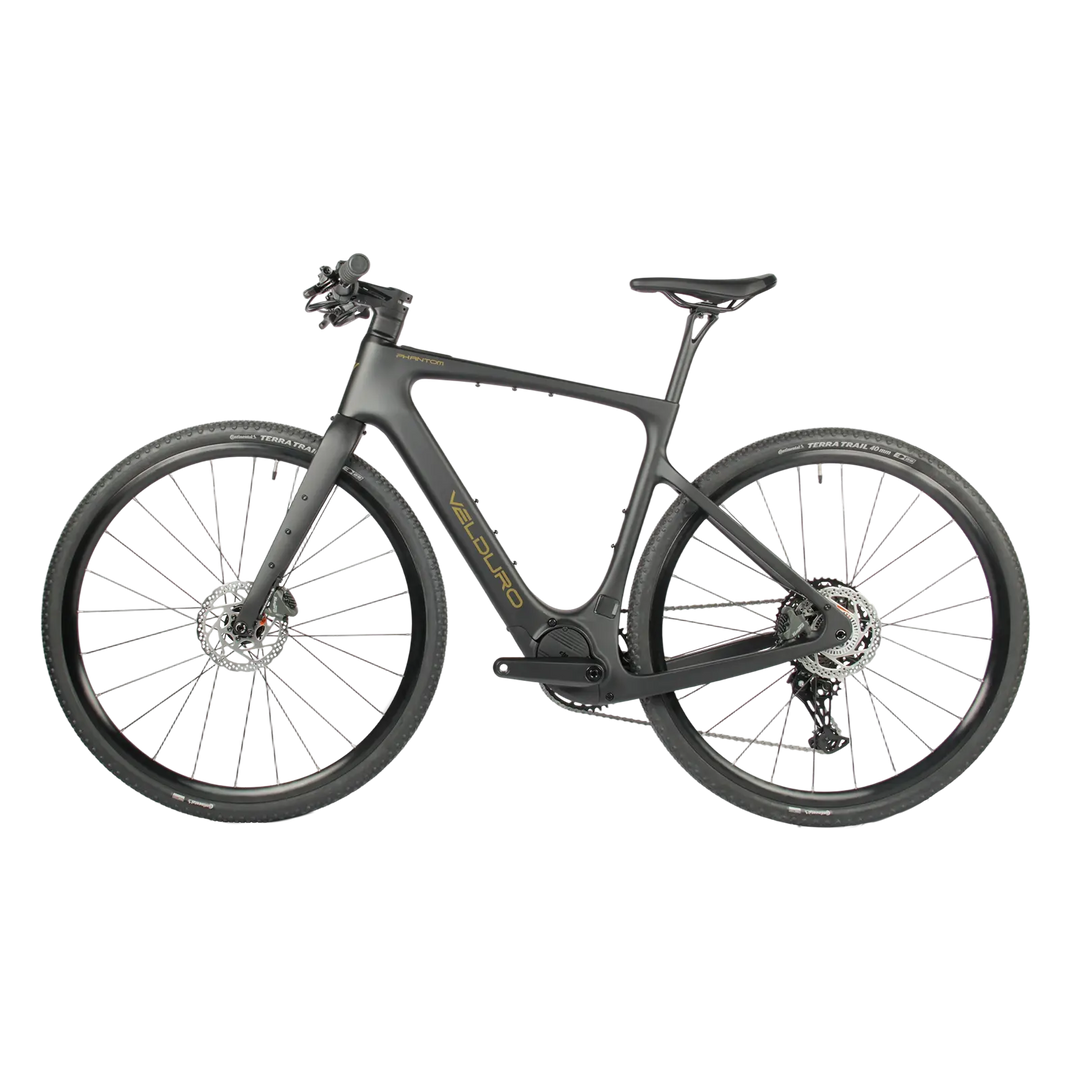

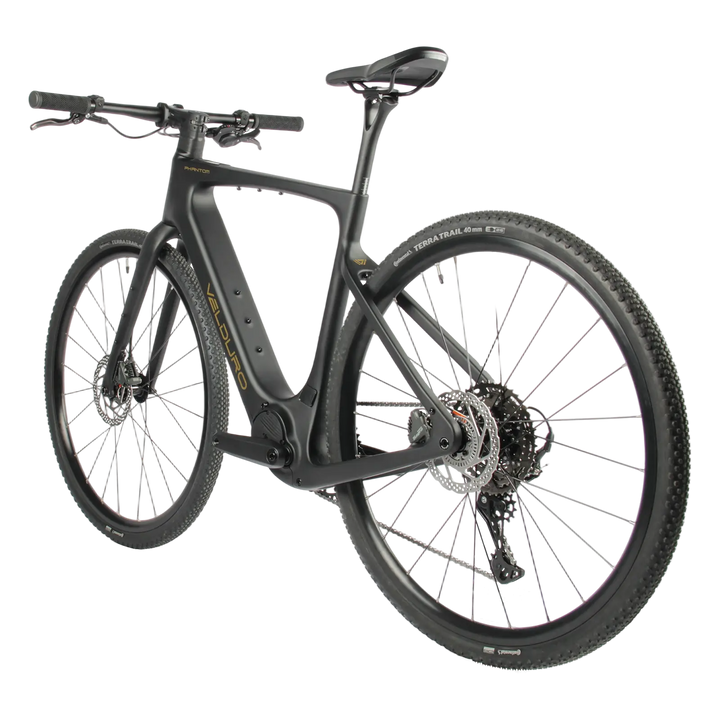

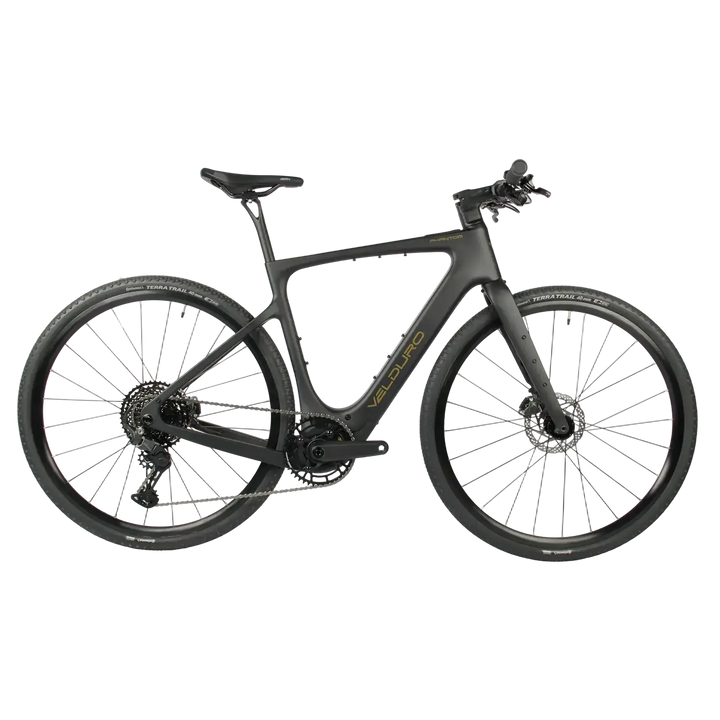

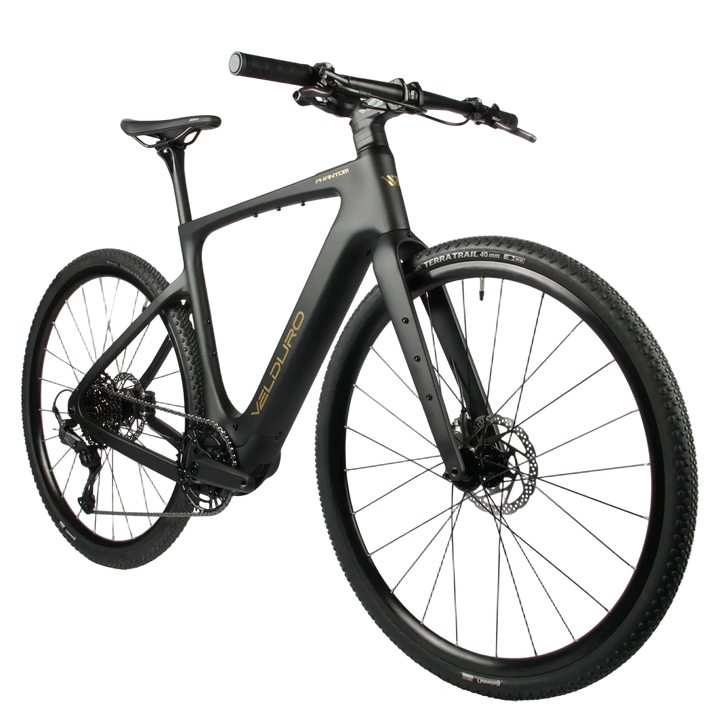

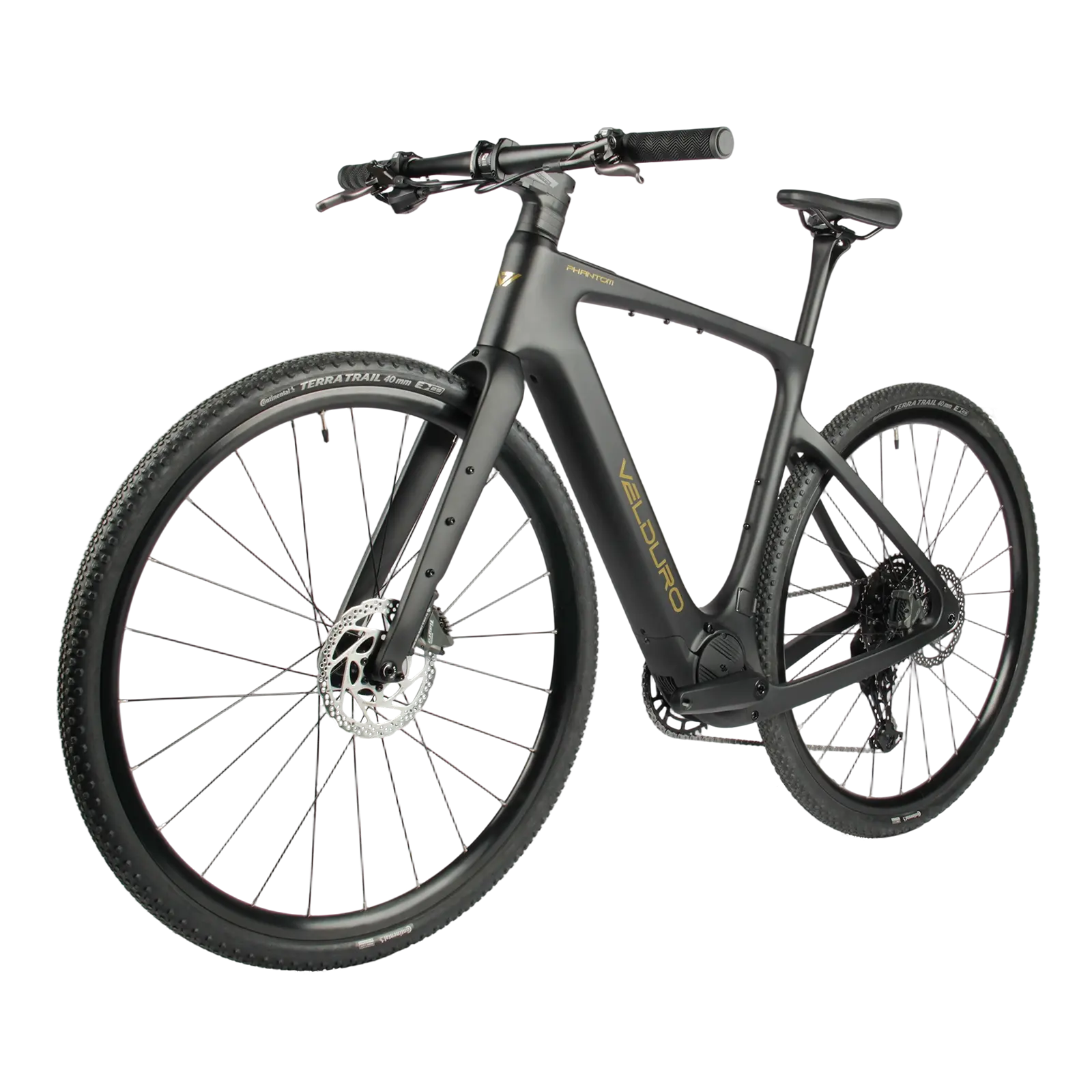

Name: Velduro Phantom S - Commuter
Brand: Velduro Bikes
Price: 7990.0 NZD
Availability: OutOfStock

7,990.00 NZD

Shipping calculated at checkout.

The Phantom S is the ultimate flat bar e-commuting and or adventure machine. With the same award-winning ultra-lightweight carbon frame as the Phantom X, this economically priced model is set to revolutionise your commute and weekend riding.

Low stock - 3 items left
Backordered, shipping soon

Size

Small

Medium

Large

Xtra Large

Geometry

Phantom E-Gravel Geometry
		S	M	L	XL
A	Seat Tube Length (mm)	466	486	506	526
B	Top Tube Horizontal (mm)	520	534	551	565
C	Top Tube Actual (mm)	495	515	534	548
D	Head Tube Angle (°)	70	70.5	71	71
E	Seat Tube Angle (°)	74.4	74.1	73.6	73.6
F	Standover (mm)	772	785	815	830
G	Head Tube Length (mm)	135	147	159	179
H	Wheelbase (mm)	1015	1019	1030	1040
I	Front Center (mm)	600	605	606	620
J	Chain Stay Length (mm)	425	425	430	430
K	Bottom Bracket Drop (mm)	72.5	72.5	72.5	72.5
L	Bottom Bracket Height (mm)	283	283	283	283
M	Fork Rake (mm)	50	50	50	50
N	Trail (mm)	64	63	63	63
O	Stack (mm)	554	567	581	600
P	Reach (mm)	366	372	377	385
Q	Axle to Crown (mm)	395	395	395	395
Recommended Height		160-170	172-182	180-188	185-195

Carbon Fibre Monocoque Frame

Shimano Cues 11 Speed

8 Mounting Points on Frame and 6 Mounting Points on Fork for Bike Packing

Warranty: Frame 5-Years | Avinox Drive System 2-Years

Liquid error (snippets/image-element line 113): invalid url input

[{"id":44892268921005,"title":"Small","option1":"Small","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Velduro Phantom S - Commuter - Small","public_title":"Small","options":["Small"],"price":799000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44834638692525,"title":"Medium","option1":"Medium","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Velduro Phantom S - Commuter - Medium","public_title":"Medium","options":["Medium"],"price":799000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44834638725293,"title":"Large","option1":"Large","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Velduro Phantom S - Commuter - Large","public_title":"Large","options":["Large"],"price":799000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44834638758061,"title":"Xtra Large","option1":"Xtra Large","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Velduro Phantom S - Commuter - Xtra Large","public_title":"Xtra Large","options":["Xtra Large"],"price":799000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

Velduro Phantom S - Commuter Velduro Bikes

SPECIFICATIONS

Frame: Carbon fiber, gravel catagery, battery integrated, inner cable routing, 12X142mm, 8
mounting points, rack compatible
Fork: Carbon gravel fork, 6 mounting point 12X100mm , offset 50mm
Headset: Token TK155SP Dia28.6, Alloy dia top& bottom 52mm
Saddle: Fizik terra aidon X5
Seatpost: Velduro carbon Dia27.2 380mm, BLK
Handlebar: Velduro alloy MTB straight, Dia31.8, width:680mm, BLK
Stem: Velduro Alloy road stem, BLK, S&M: 75mm, L&XL: 95mm Length
Grips: Velduro MTB comfort BLK

Brakes: Sram S300 hydraulic, two piston
Discs: Sram centerline, front 160mm, rear 160mm
Rear derailleur: Shimano Cues RD-U6000, 11-speed
Cassette: Shimano Cues LG400-11S 11-45T
Cranks: Avinox SL 165mm
Spider: Avinox 104BCD spider
Chainwheel: Velduro customised alloy 44T, 3mm inward
Chain: Shimano LG500 linkglide BLK

Front hub: Velduro 2-bearings, BLK, 6-bolts, 13G*24H, 12x100mm
Rear hub: Velduro 4-bearings, BLK, 6-bolts, 13G*24H, 12x142mm, HG freehub
Rims: 700C, Velduro alloy, BLK, 13G*24H, 25mm inner width, 25mm depth, with hook
Tires: Continental Terra Trail 700*45C BLK, with tube

*Your Phantom is tubeless-ready, but comes with a tube.

Motor: Avinox M1 36V 105Nm 850W, boost to 120nm 1000W
Battery: Avinox 600Wh integrated
Display: Avniox DP100 integrated 2-inch display
Button: Avinox BC100 Wireless control left&right
Charger: Avinox 4A charger
Cables: Avinox customised Waterproof and foolproof wiring

Download Phantom NZ assembly manual here
Download Phantom Global assembly manual here
Download Phantom user manual here
