VELDURO

Rogue emtb

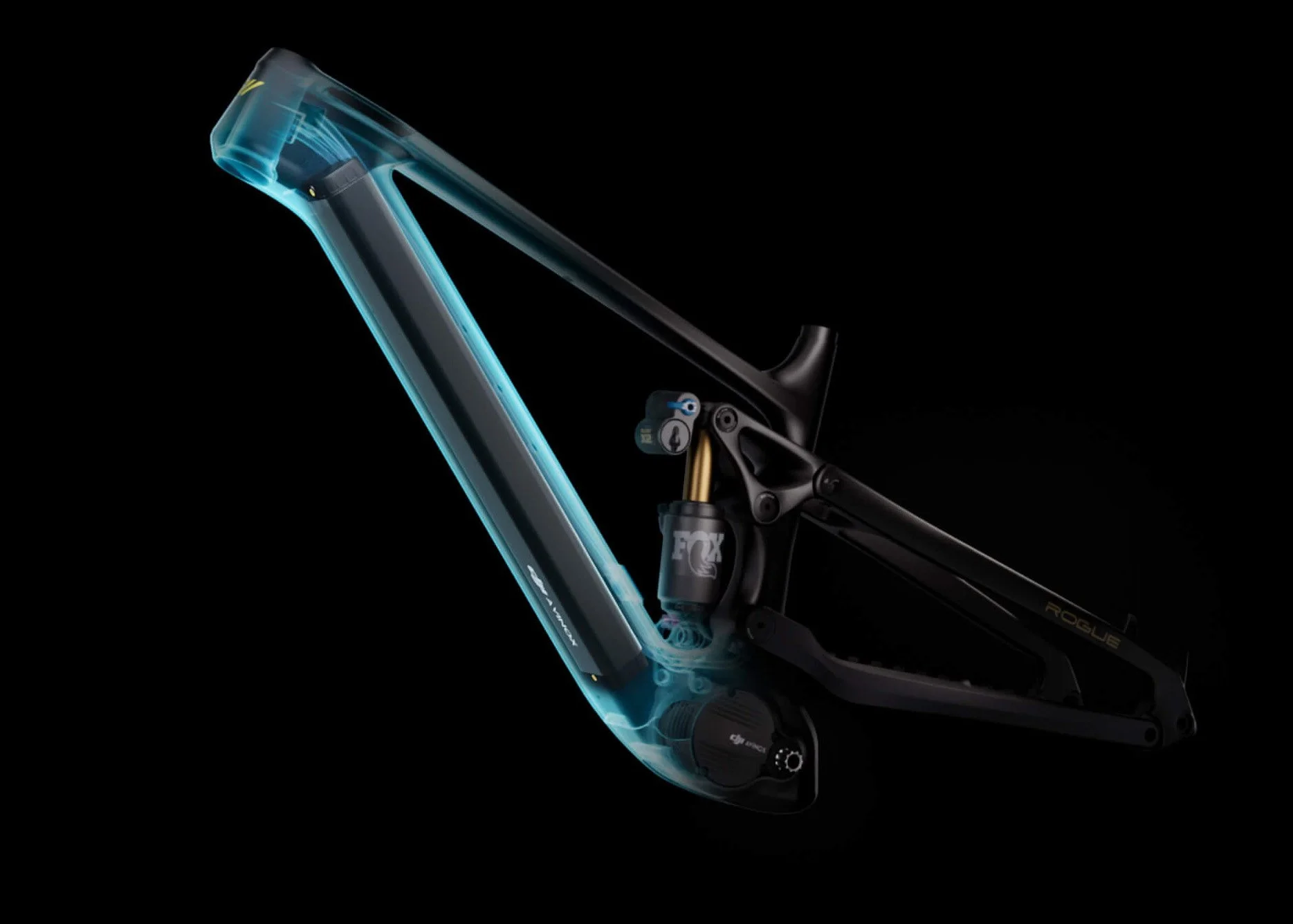

Introducing the Velduro Rogue

mid-pivot, i-track patented,

full carbon e-MTB powered by the

DJI Avinox drive system.

Developed with direct rider input and featuring patented @itracksuspension system. this bike is built to send!

Rogue R: RRP: TBC

Rogue frame only: RRP - TBC

SPECIFICATIONS

- Frame: Carbon fibre monocoque enduro emtb frame
- Headset: Internal alignment
- Saddle: Fi’z:ik terra aidon X5 - 145 mm -EMTB,
- OneUp - V3 Dropper
  S: 180mm, M&L: 210 mm, XL: 240mm
- Handlebar: OneUp, alloy, 800L, 35R.
- Stem: Alloy CNC Stem, 35 mm dia, 42mm long, FSA allow intergrated headset
- Grips: OneUp thick grips - Black.
- Sram Mavan Silver 4- Pistion hydraulic brake
- Sram HS2 disc front 220 , rear 200mm
- Rear derailleur: SRAM AXS T-Type
- Cranks -Sram GX 155mm
- Pedal: Riders Choice
- Chain wheel 7050, heat treated and hard anodised Lekkie one piece custom 34T.
- Chain: Sram GX T-TYPE
- Front hub: DT SWISS 350 DBIS BOOST 15mm
- Rear hub: DT SWISS 350 DBIS BOOST 12mm XD
- Sapim E-Light spokes
- Front rim: DT SWILL EX511 29 30mm 32H
- Rear rim: DT SWISS EX511 27.5 30mm 32H
- Tube: tubeless
- Tyre: TBC
- Cassette SramXS 1275 T-type 12S 10-52T
- Motor: DJI AVINOX M1 105 Nm 850W
- Battery: 800 WH
- Charger: DJI AVINOX M1 36V 4A
- Display: DJI AVINOX M1 DP100
- FOX 38 K Float 29’ F-S - 170mm travel
- FOX Float X2 F-S, trunnion 205×65mm

  Rogue EMTB Geometry




      S
      M
      L
      XL



      A
      Eff. Seattube Length (mm)
      390
      410
      430
      465


      B
      Headtube Angle (°)
      63.5
      63.5
      63.5
      63.5


      C
      Eff. Toptube Length (mm)
      573.6
      599.6
      623.9
      652


      D
      Reach (mm)
      440
      466
      485
      515


      E
      Act. Seattube Angle (°)
      75.5
      75.5
      75.5
      75.5


      F
      Seattube Offset (mm)
      30
      30
      30
      30


      G
      Eff. Seattube Angle (°)
      78.1
      78.1
      78
      77.9


      H
      Chainstay Length (mm)
      440
      440
      440
      440


      I
      BB Drop at Rear Wheel (mm)
      12
      12
      12
      12


      J
      BB Drop at Front Wheel (mm)
      31
      31
      31
      31


      K
      Headtube Length (mm)
      110
      110
      120
      125


      L
      Axle to Crown (mm)
      584
      584
      584
      584


      M
      Fork Offset (mm)
      44
      44
      44
      44


      N
      Trail (mm)
      140.1
      140.1
      140.1
      140.1


      O
      Stack (mm)
      632.5
      632.5
      641.4
      645.9


      P
      Wheelbase (mm)
      1230
      1265
      1300
      1335


      Recommended Height (CM)
      160-172
      172-182
      180-188
      185-195
