Name: Velduro Rogue - Frame Only
Brand: Velduro
Price: 8499.0 NZD
Availability: OutOfStock

$8,499.00

Shipping calculated at checkout.

Build your dream EMTB with Velduro. Using flip chips the Rogue's modular frame can adapt to your needs and riding style. Swap the travel, tweak geometry or switch wheel sizes and customise your ride to create your Dream Machine. In Standard Mode (170mm fork / 165mm rear), it's a trail-taming beast. Switch to All-Mountain Mode (160mm front/rear) for flowy precision, or unleash enduro Mode (180mm front / 170mm rear) to dominate descents. The Rogue is powered by the DJI Avinox drive system and 800wh battery. (NZ Arrival Date November 2026)

In stock, ready to ship
Backordered, shipping soon

Geometry

Rogue EMTB Geometry
		S	M	L	XL
A	Eff. Seattube Length (mm)	390	410	430	465
B	Headtube Angle (°)	63.5	63.5	63.5	63.5
C	Eff. Toptube Length (mm)	573.6	599.6	623.9	652
D	Reach (mm)	440	466	485	515
E	Act. Seattube Angle (°)	75.5	75.5	75.5	75.5
F	Seattube Offset (mm)	30	30	30	30
G	Eff. Seattube Angle (°)	78.1	78.1	78	77.9
H	Chainstay Length (mm)	440	440	440	440
I	BB Drop at Rear Wheel (mm)	12	12	12	12
J	BB Drop at Front Wheel (mm)	31	31	31	31
K	Headtube Length (mm)	110	110	120	125
L	Axle to Crown (mm)	584	584	584	584
M	Fork Offset (mm)	44	44	44	44
N	Trail (mm)	140.1	140.1	140.1	140.1
O	Stack (mm)	632.5	632.5	641.4	645.9
P	Wheelbase (mm)	1230	1265	1300	1335
Recommended Height (CM)		160-172	172-182	180-188	185-195

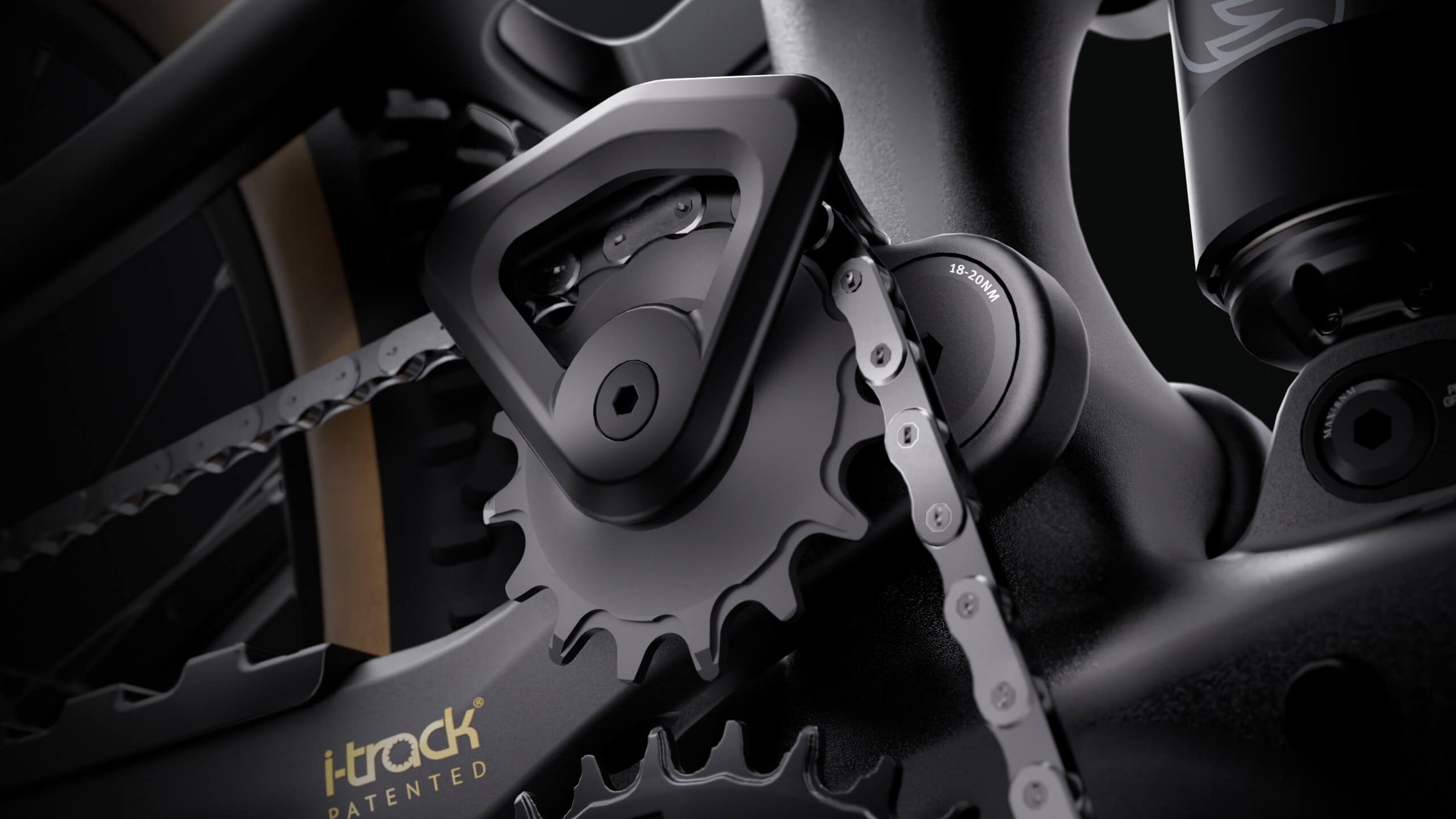

I-Track suspension: Lower Kick-back + optimised anti-squat

Carbon Fibre Monocoque Frame

Shock Flip Chip: unlock 5mm extra travel (172mm max) and

Mullet or 29er - Our GeoLock module keeps head tube angle, chain stay length and BB height identical across wheel sizes with no compromises

Warranty: Frame 5-Years | Avinox Drive System 2-Years

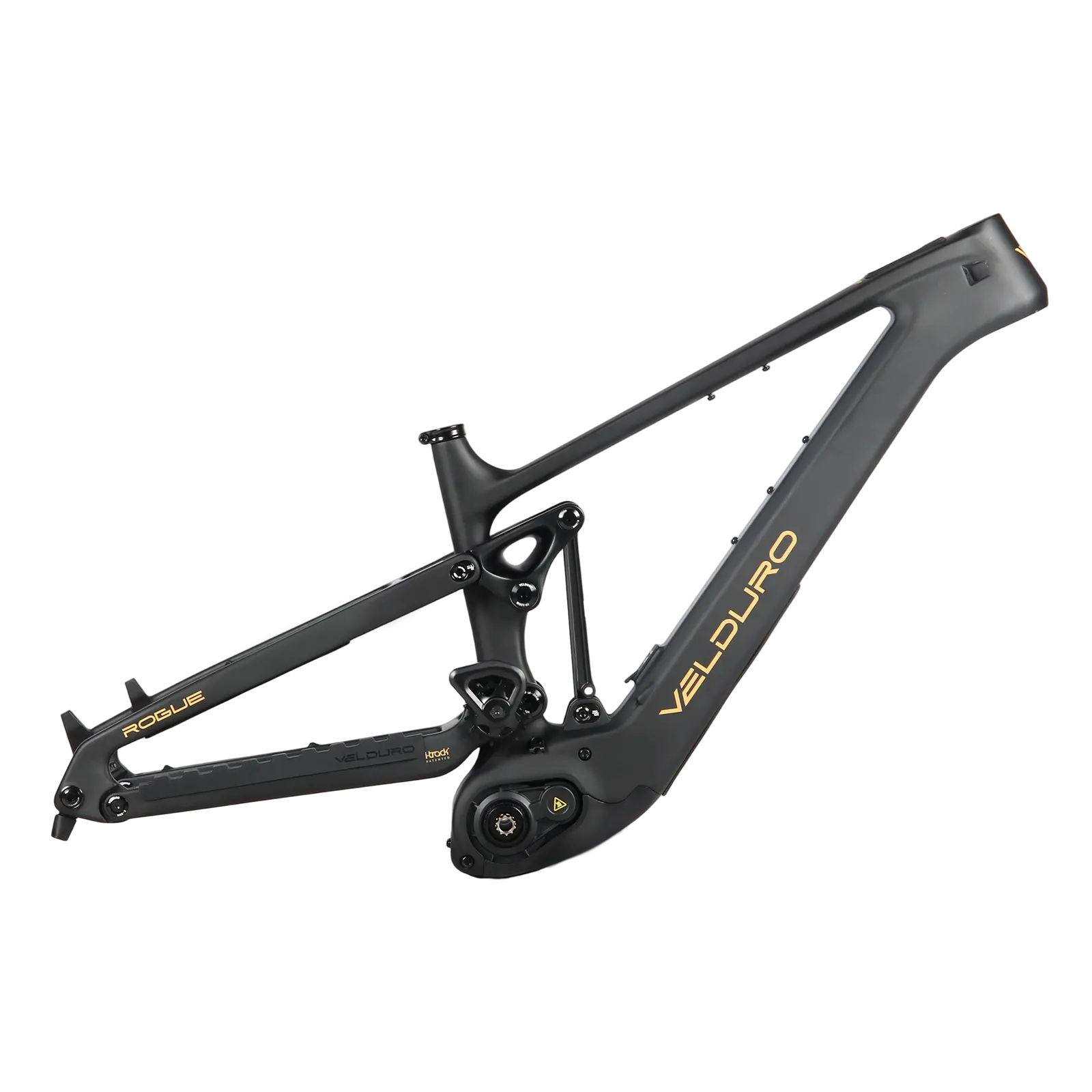

Frame only does not include rear shock, Custom tuned Shock will be available to order: Pricing TBC

Liquid error (snippets/image-element line 113): invalid url input

[{"id":44920456085677,"title":"Small \/ Without Shock","option1":"Small","option2":"Without Shock","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Velduro Rogue - Frame Only - Small \/ Without Shock","public_title":"Small \/ Without Shock","options":["Small","Without Shock"],"price":849900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44920456118445,"title":"Medium \/ Without Shock","option1":"Medium","option2":"Without Shock","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Velduro Rogue - Frame Only - Medium \/ Without Shock","public_title":"Medium \/ Without Shock","options":["Medium","Without Shock"],"price":849900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44920456151213,"title":"Large \/ Without Shock","option1":"Large","option2":"Without Shock","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Velduro Rogue - Frame Only - Large \/ Without Shock","public_title":"Large \/ Without Shock","options":["Large","Without Shock"],"price":849900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44920456183981,"title":"Xtra Large \/ Without Shock","option1":"Xtra Large","option2":"Without Shock","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Velduro Rogue - Frame Only - Xtra Large \/ Without Shock","public_title":"Xtra Large \/ Without Shock","options":["Xtra Large","Without Shock"],"price":849900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

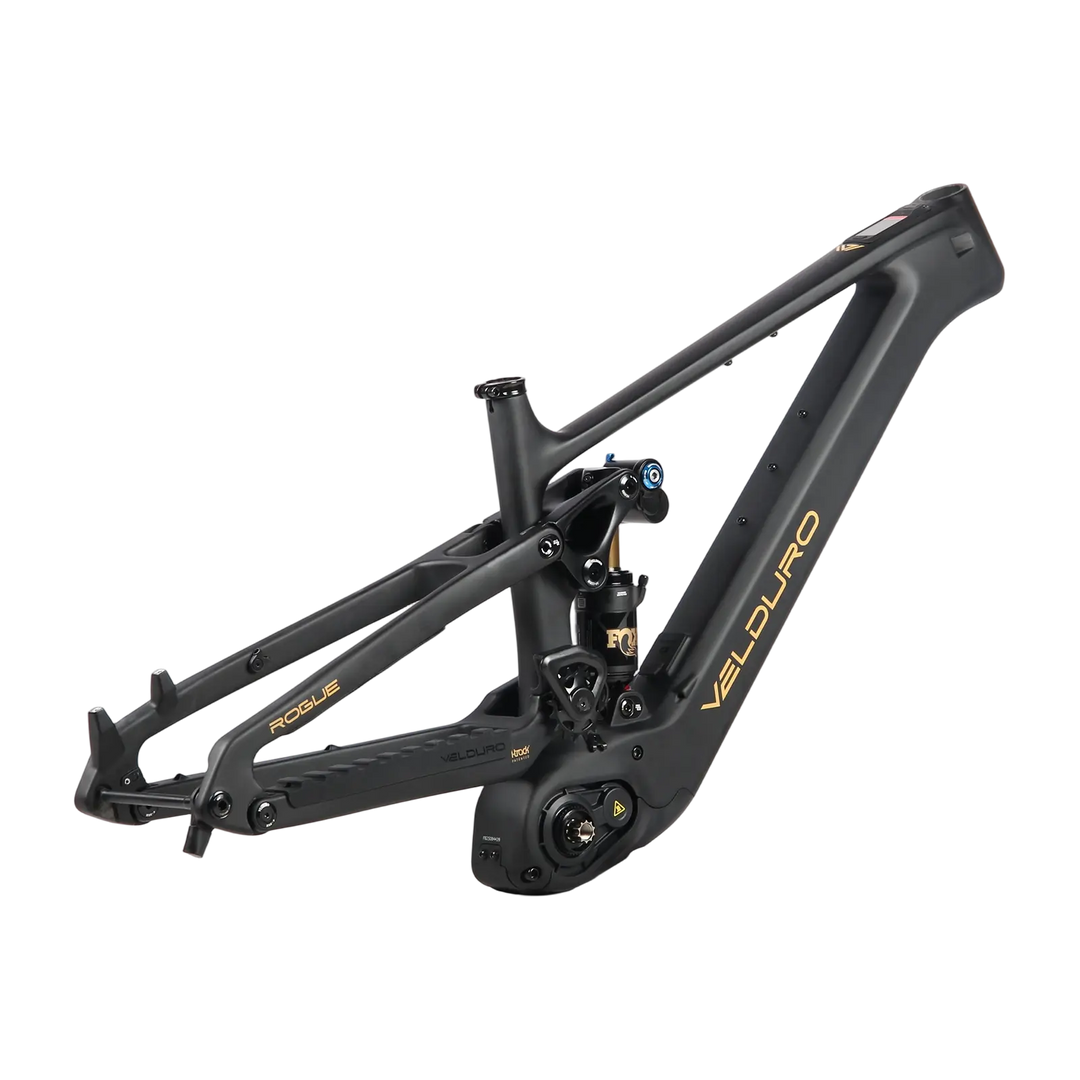

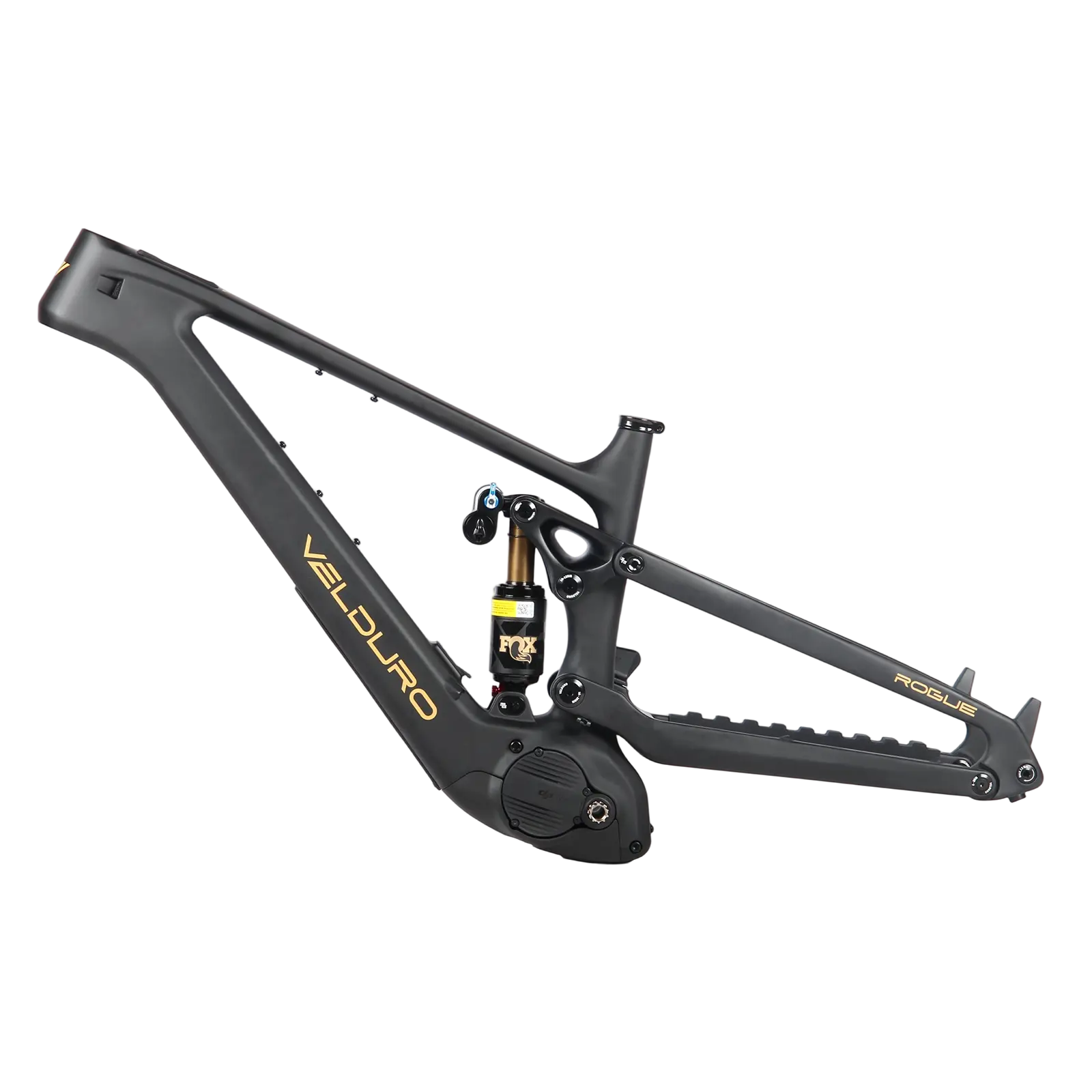

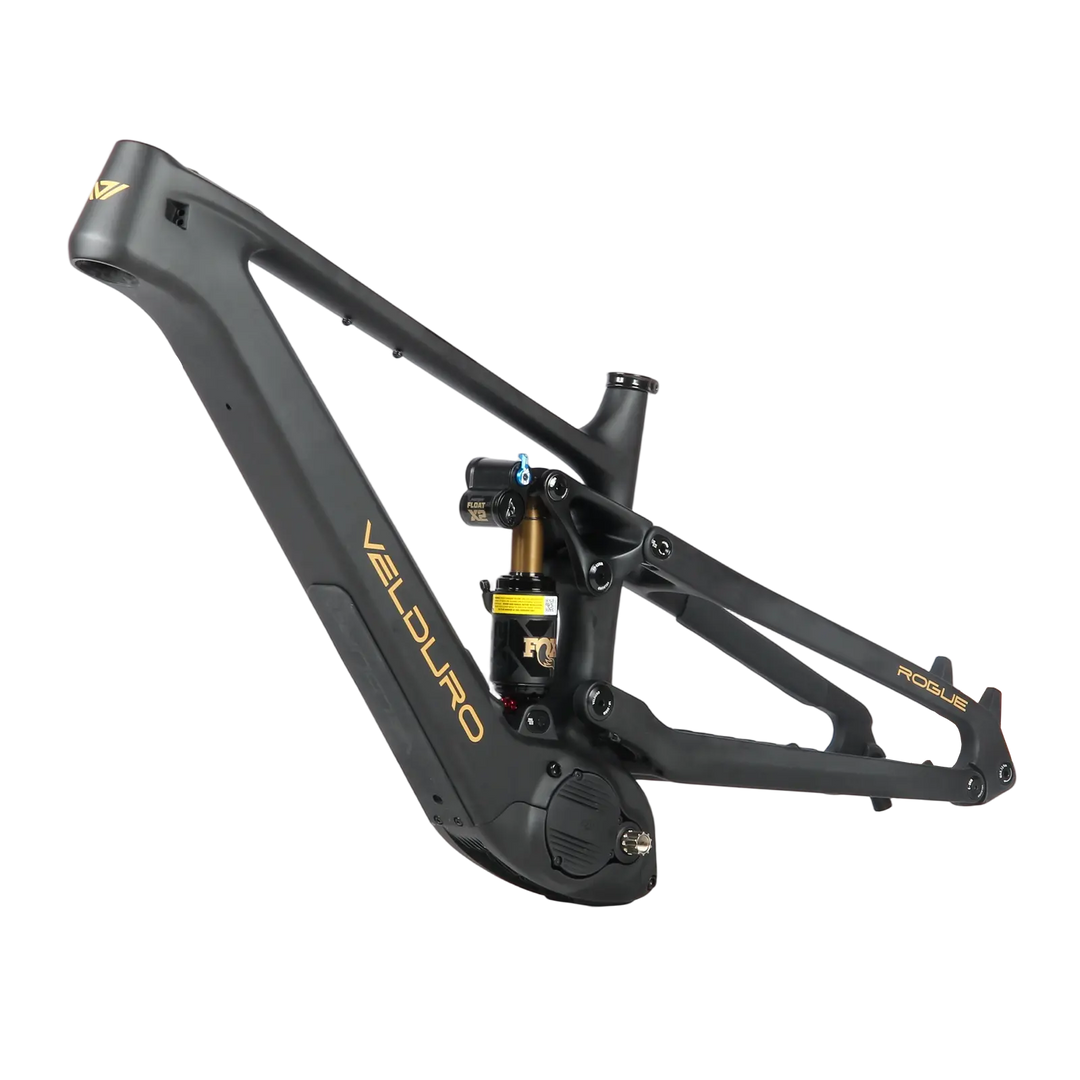

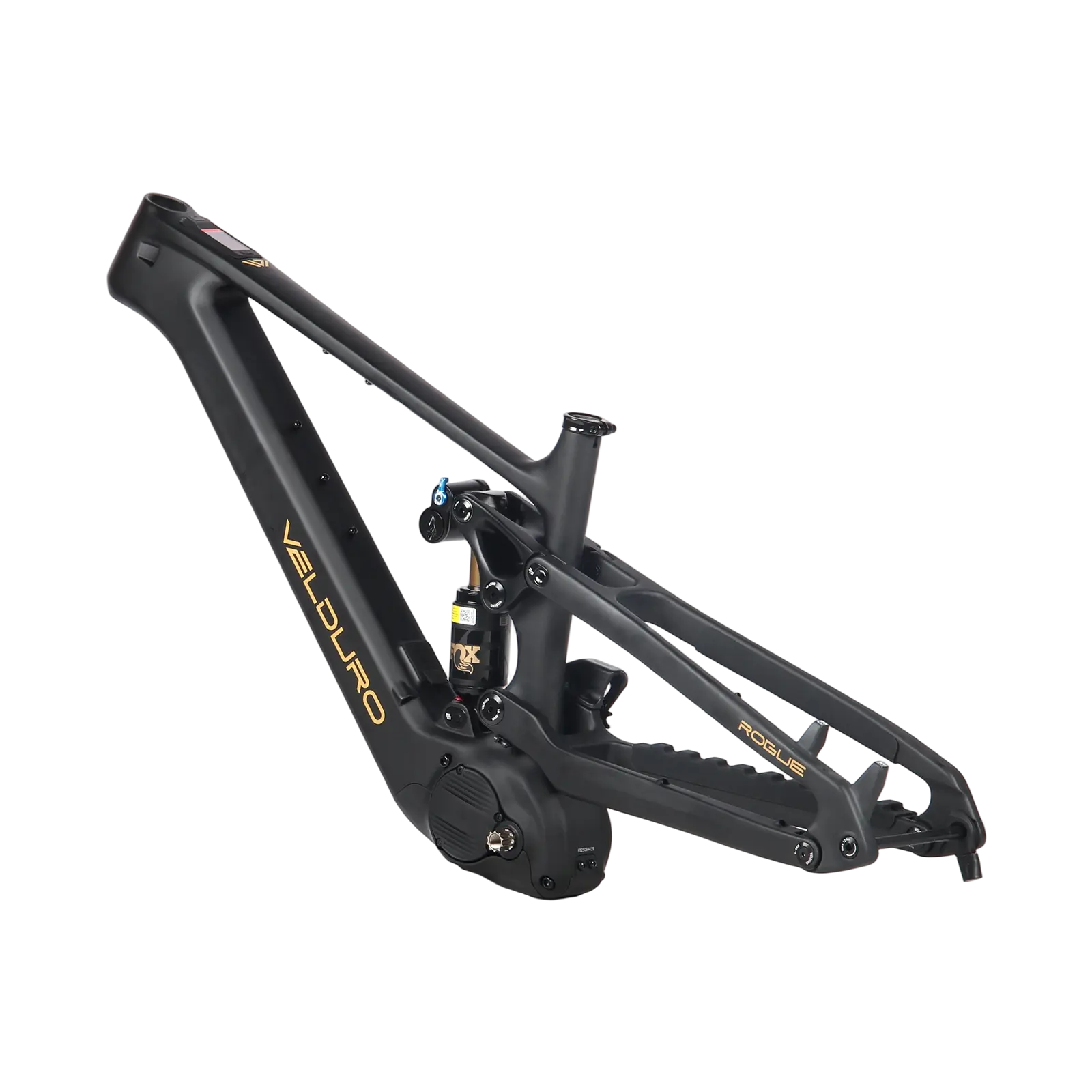

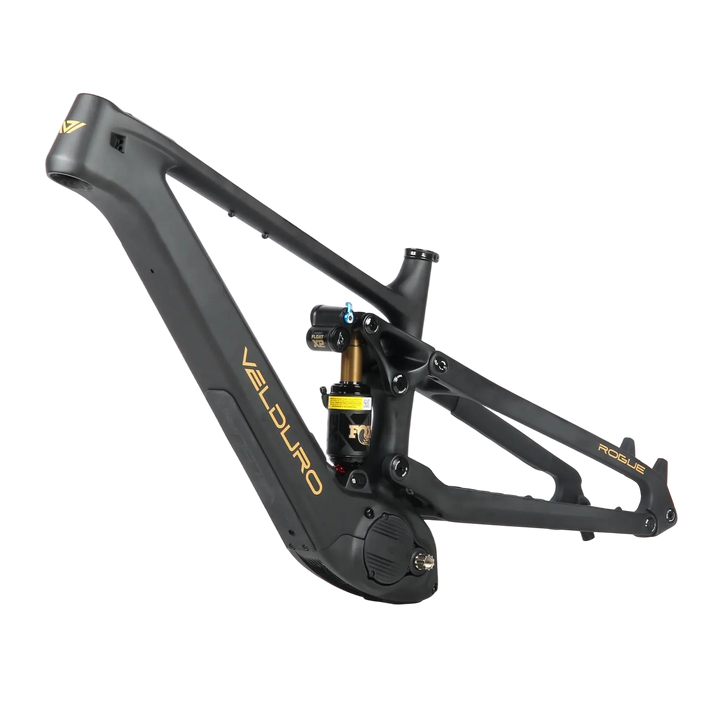

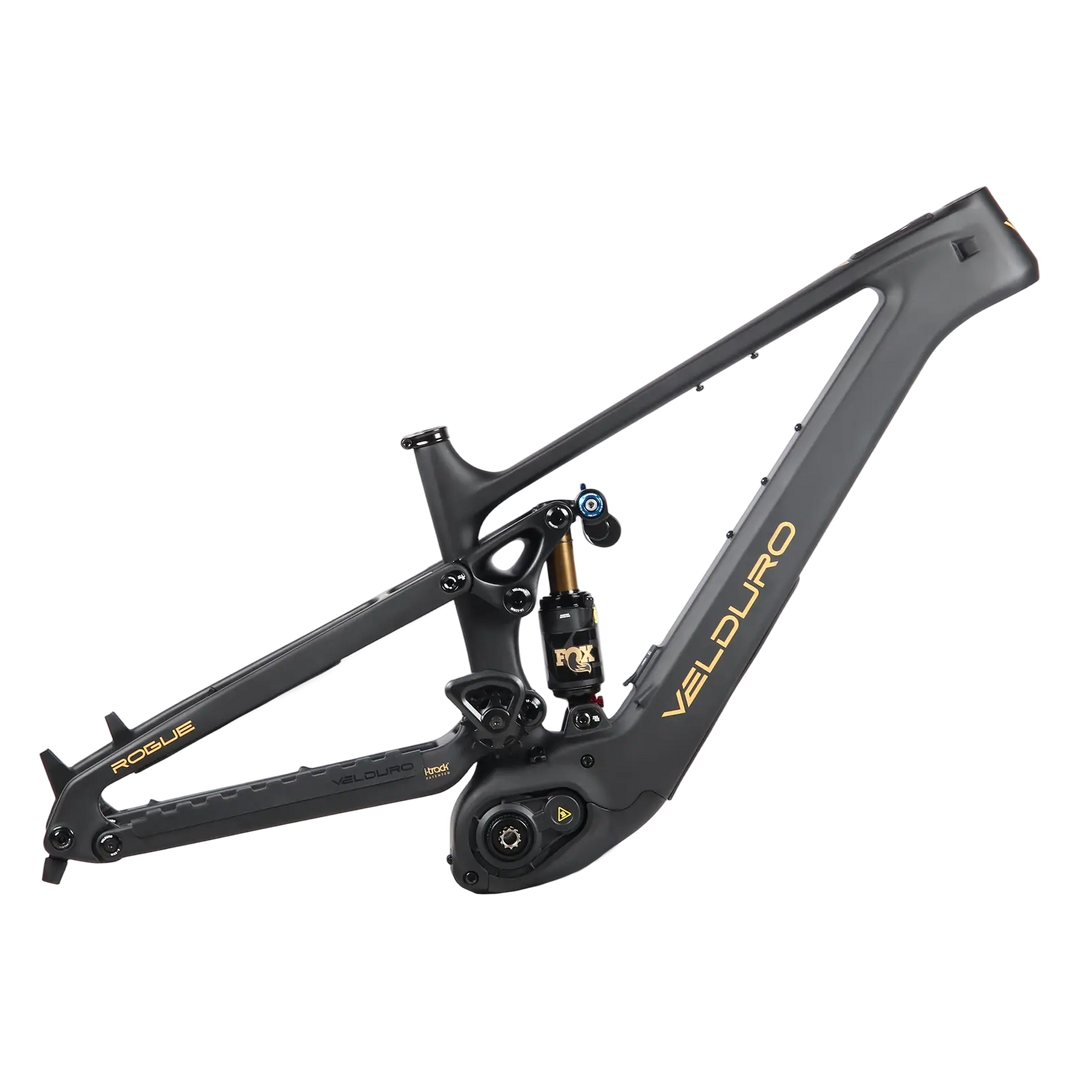

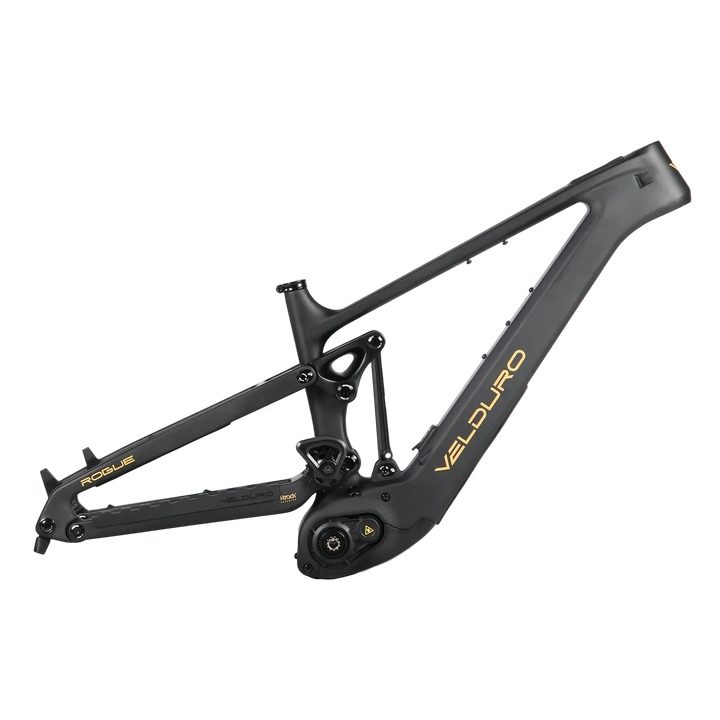

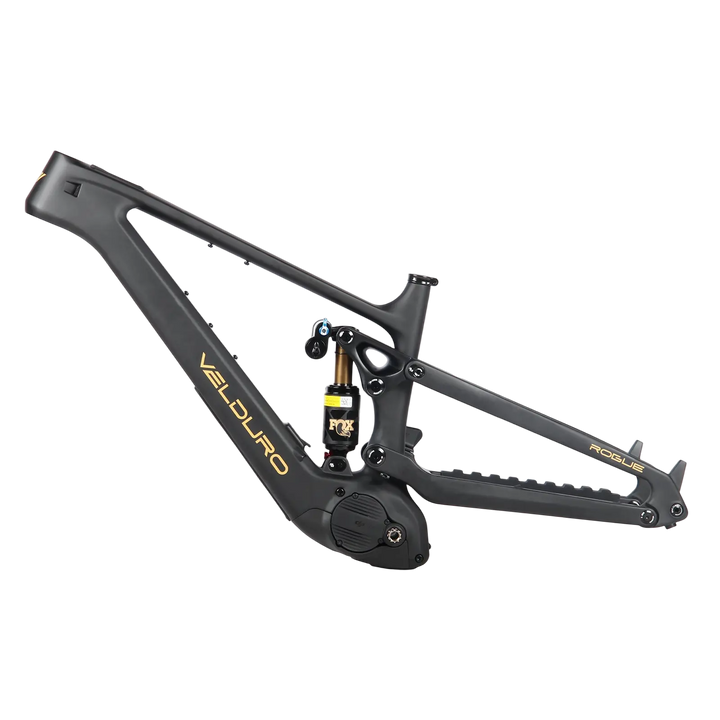

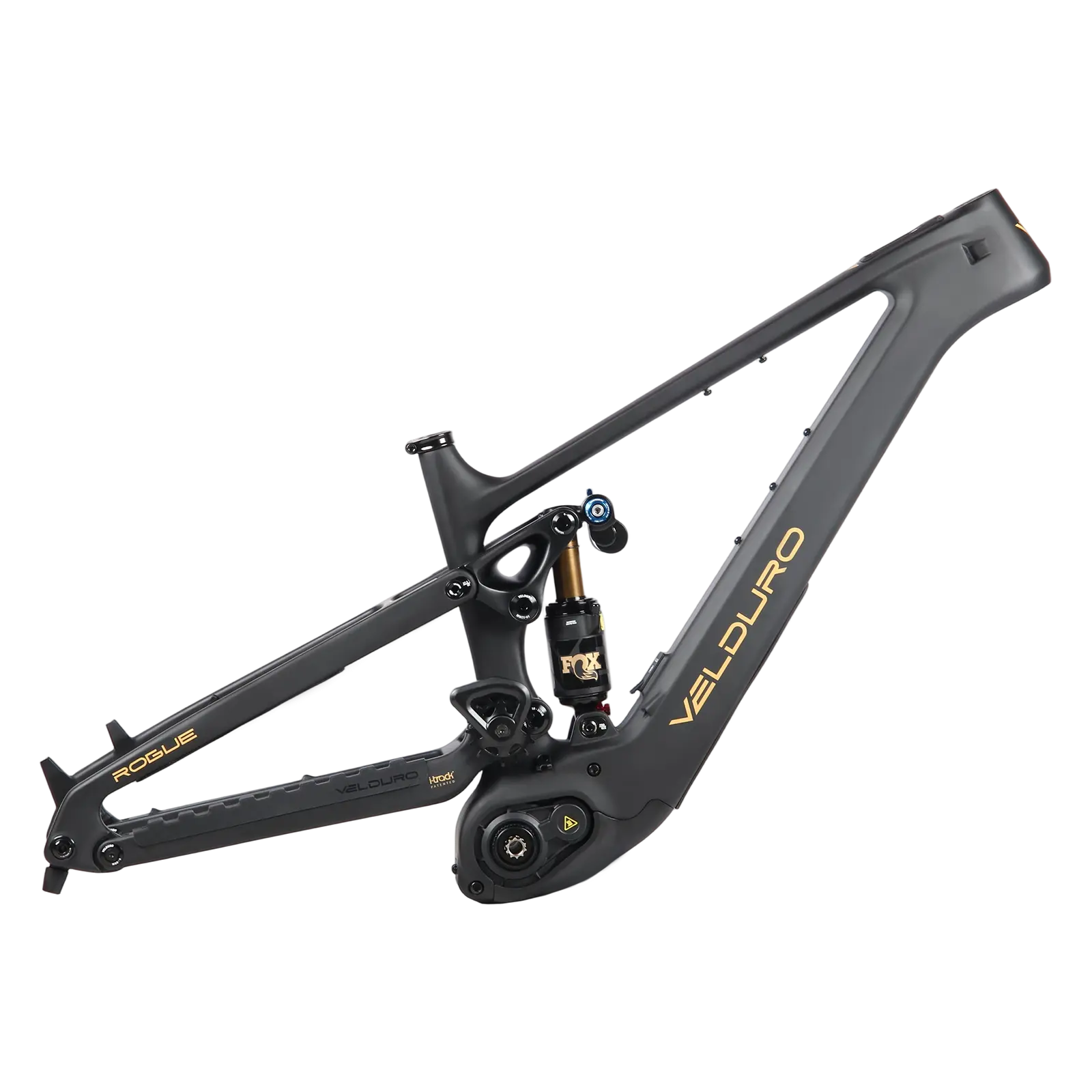

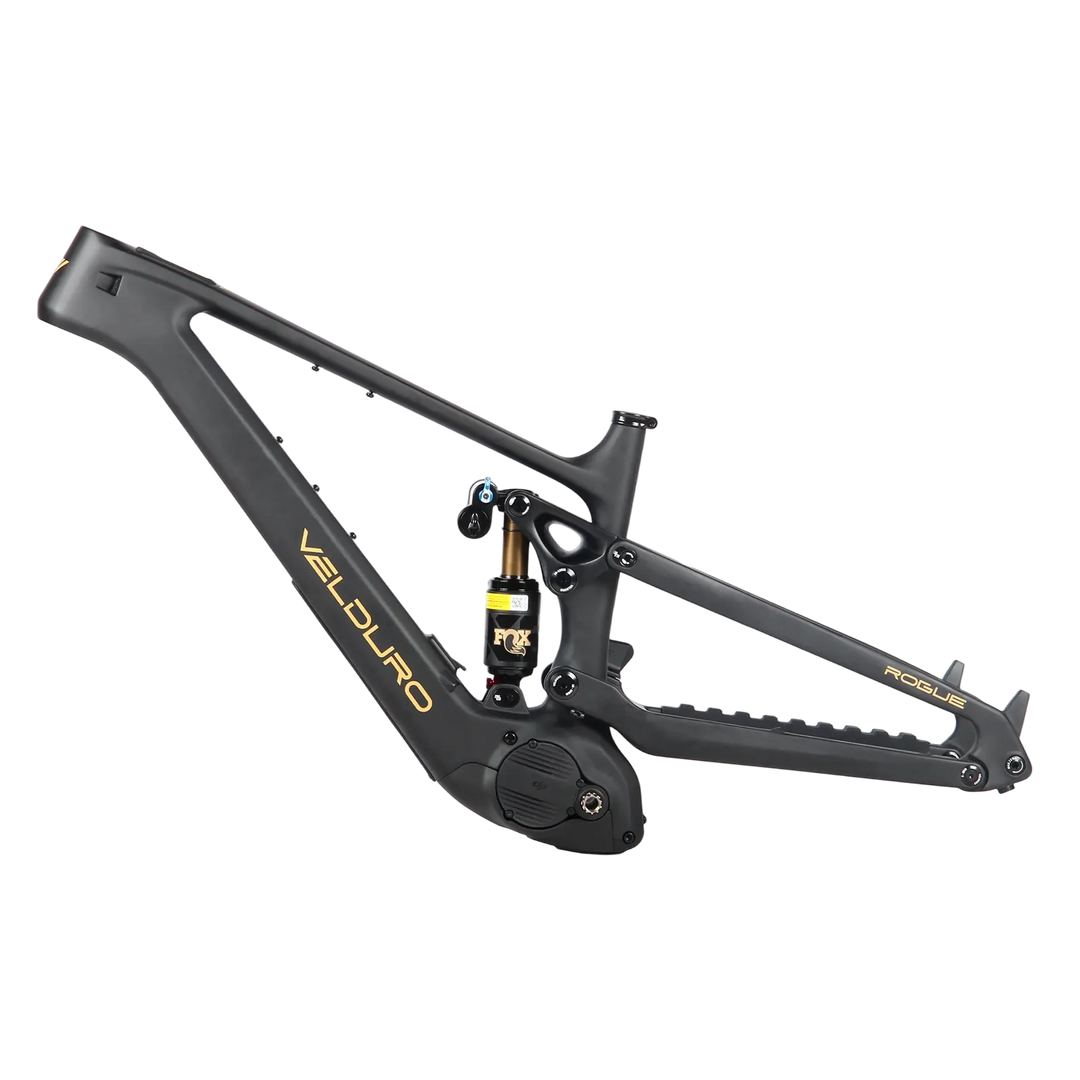

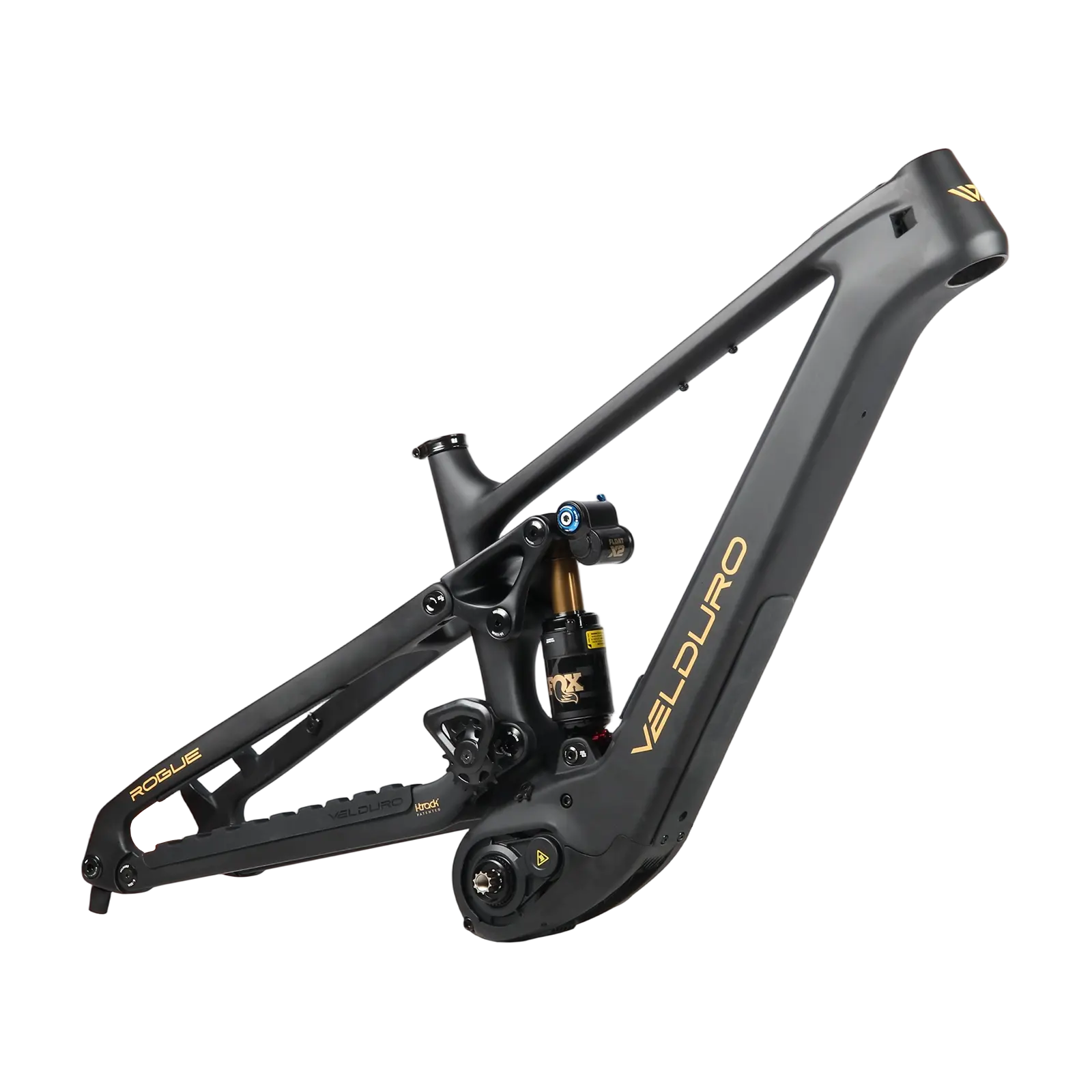

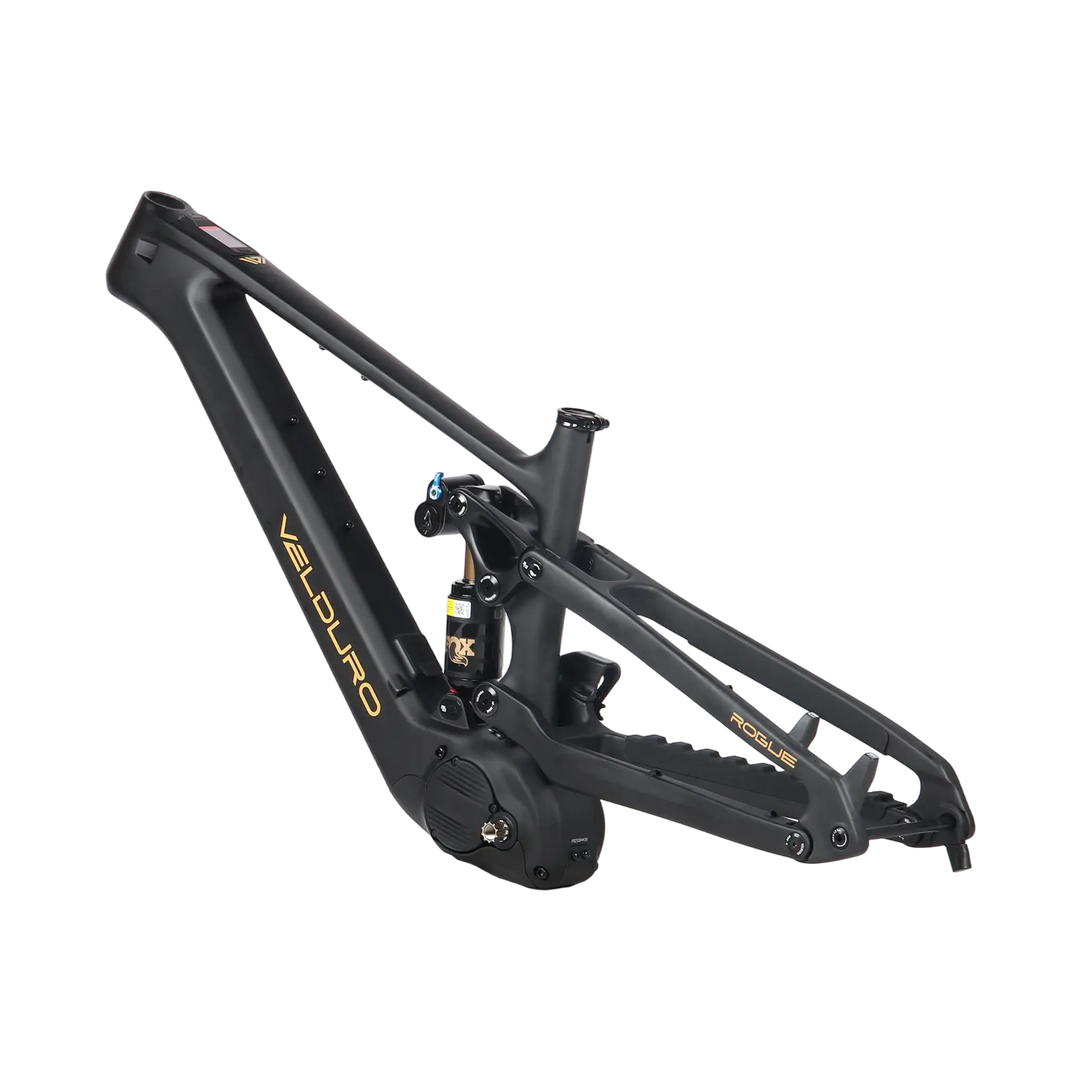

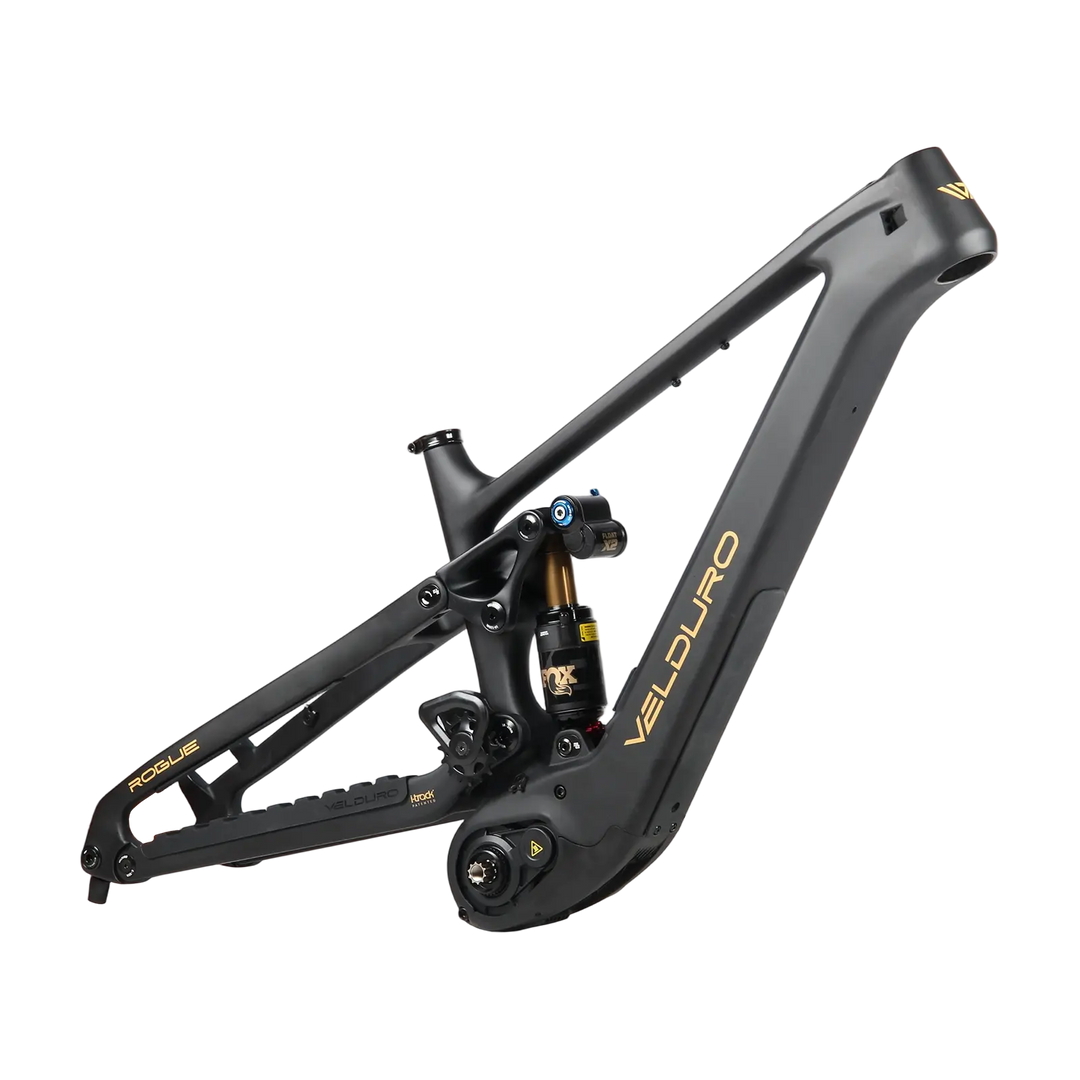

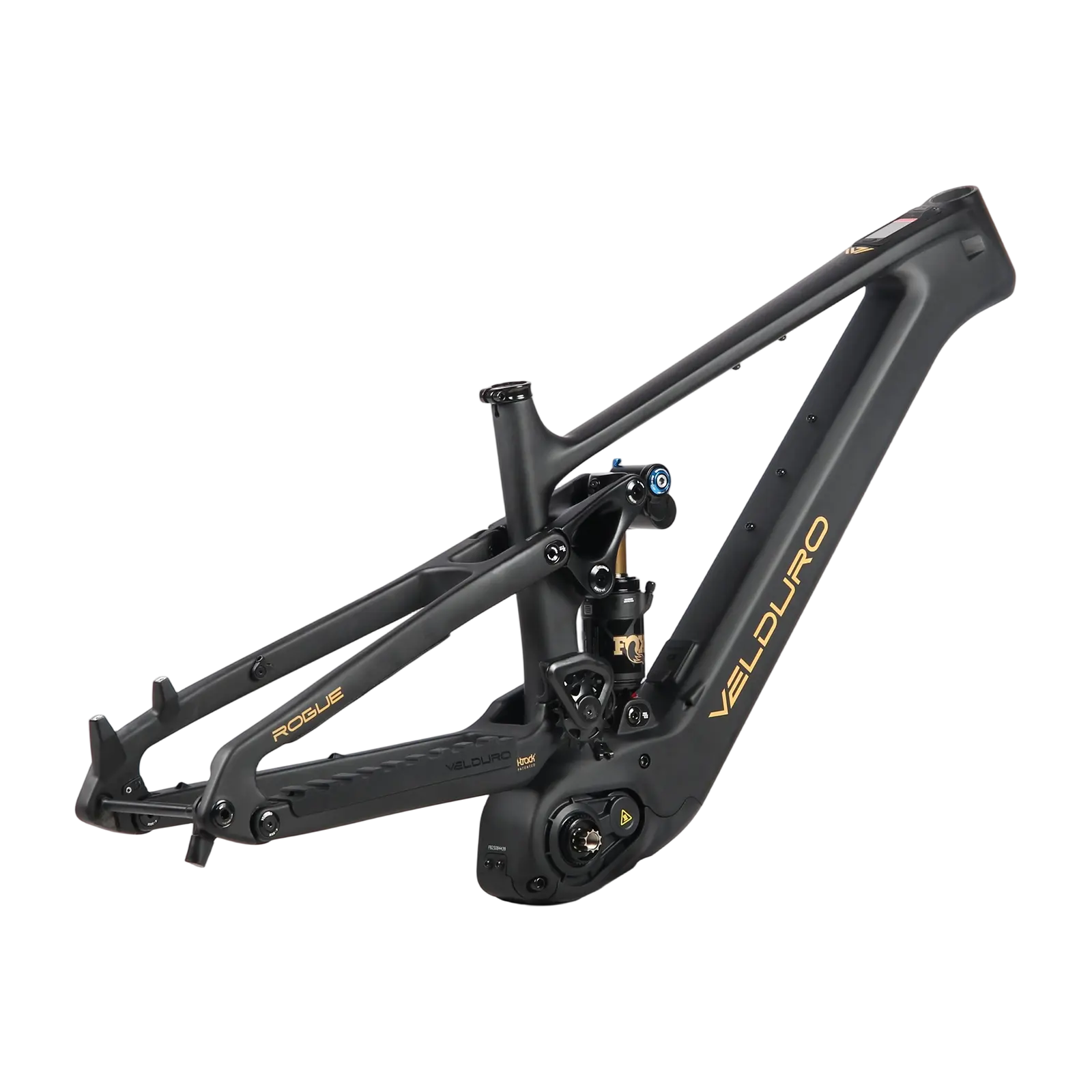

Velduro Rogue Frame, a mid-pivot, i-track patented, UDH compatible,full carbon e-MTB Frame

Riders wanted a frame only option - We listened!

Frame: Carbon fiber, enduro catagery
Mid-pivot suspension, rear travel 165mm up to 172mm, rear wheel flip chip, shock clip chip,

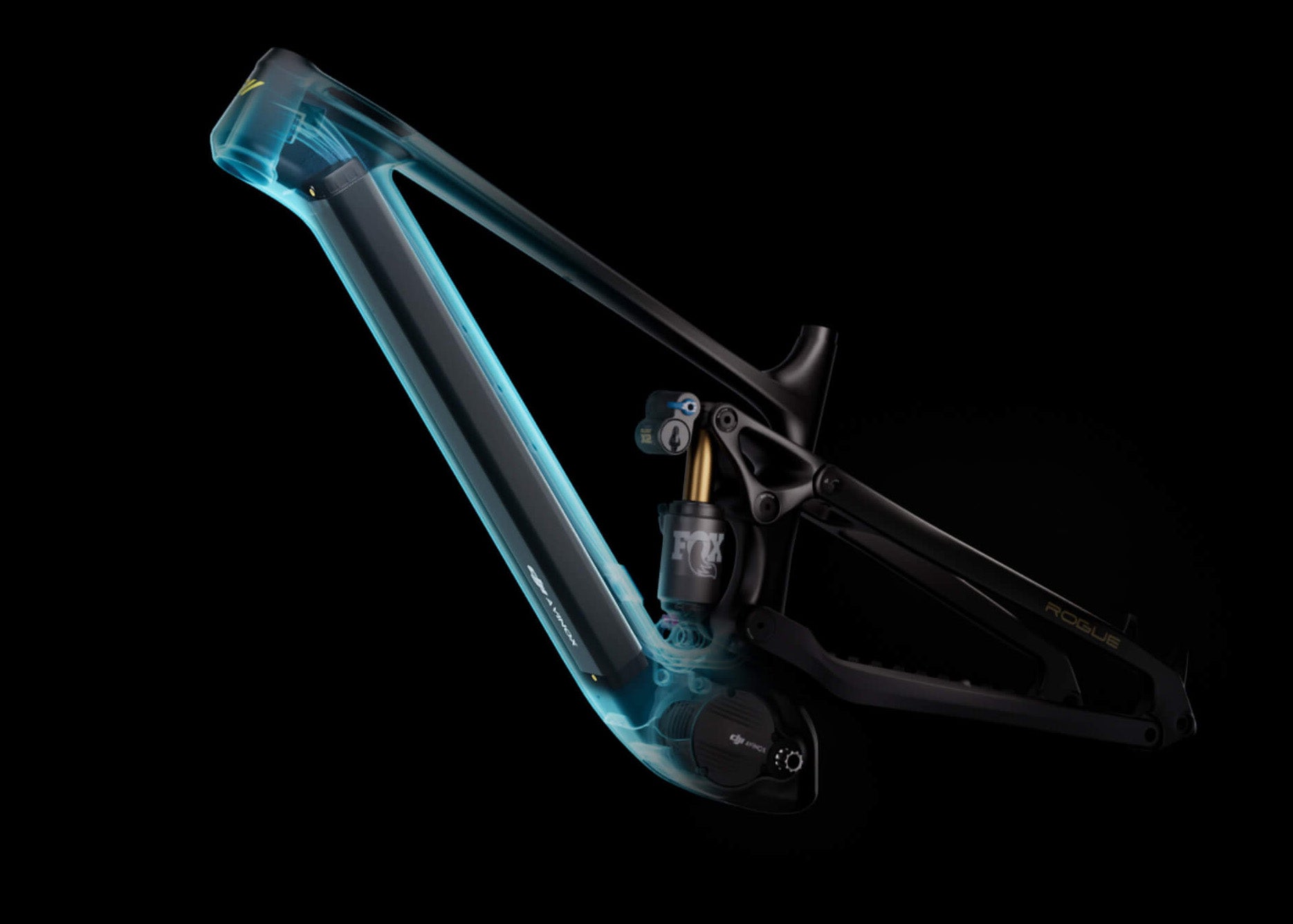

Battery integrated, Boost 12x148mm
Headset: FSA No.57 Alloy MTB, dia top 44mm bottom 56mm

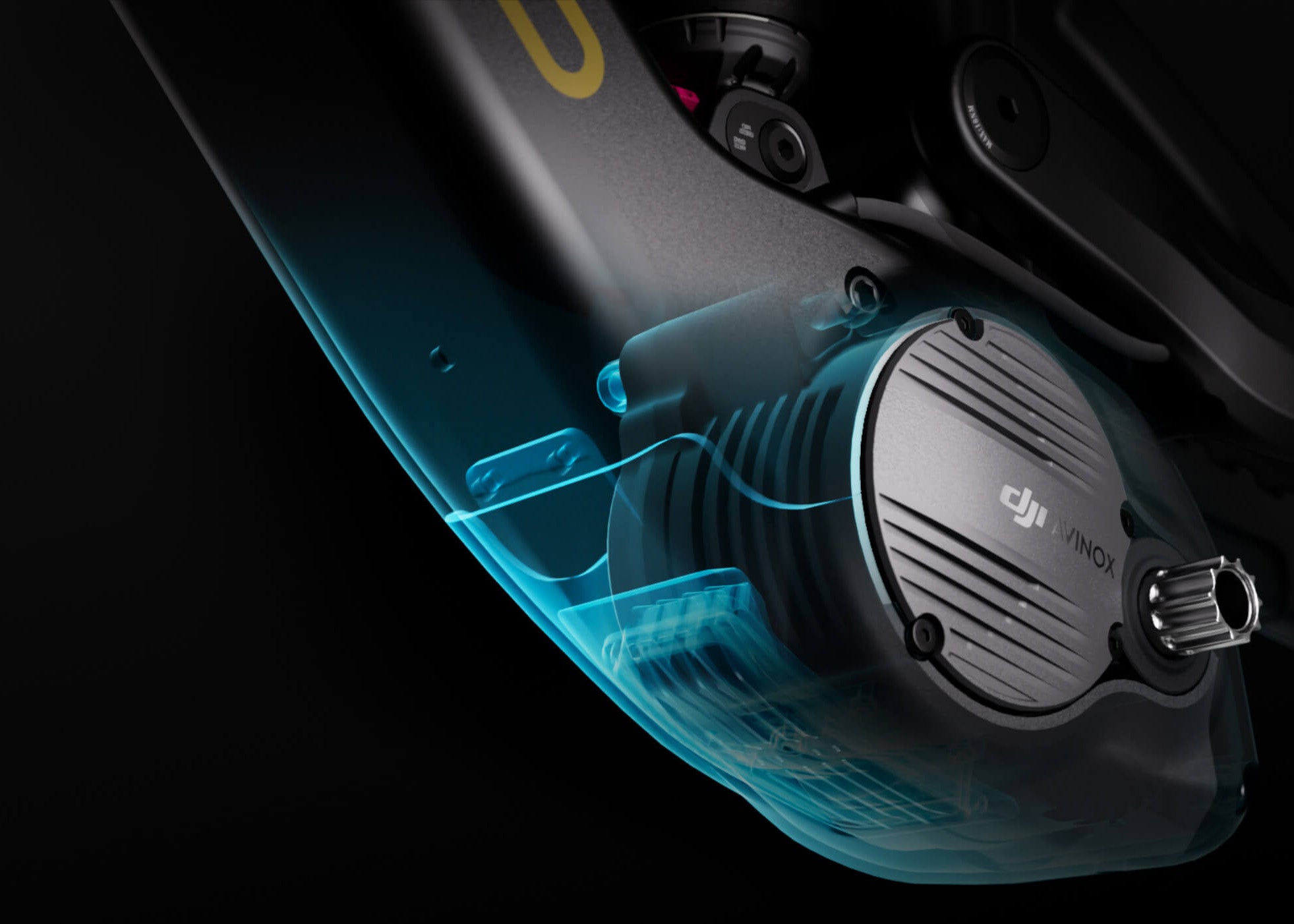

Motor: Avinox M1 36V 105Nm 850W, boost to 120nm 1000W
Battery: Avinox 800Wh integrated
Display: Avniox DP100 integrated 2-inch display
Button: Avinox BC100 Wireless control left & right
Charger: Avinox 4A charger
Cables: Avinox customised Waterproof and foolproof wiring
Associates: UDH Hanger, Seat post clamp, Cable lugs
Avinox Cranks - SL 155mm
Avinox 104 BCD Spider

SPECIFICATIONS FOR CUSTOM BUILD

External wired headset, dia top 44mm bottom 56mm

Fork: 1.5T, 160-180mm travel single crown fork suitable, 170mm as suggest, Double crown fork, not suitable
Shock: Trunnion shock only, eye to eye 205mm, bottom bushing as M8*30mm, 65mm travel as recommended for 165/172mm rear travel, 62.5mm travel for 160/165mm rear travel.

Dia 31.6mm, insert depth S: 260mm, M:280mm,L:300mm ,XL: 325mm
Recommended dropper travel: S:180mm, M&L: 210mm, XL: 240mm
Dropper cable length: 1200mm

Frame rear brake post mount 200mm directly
Front brake mount depends on your fork
Front brake cable 950mm
Rear brake cable 1700mm

Chainwheel: 104BCD, Max to 34T
Crank: Length up to 165mm, min offset:25mm
UDH derailleur suitable
1x shifting only
Shimano and SRAM compatible
E-shift and manual shift compatible
Manual shift cable length 2000mm

Front hub: depends on the fork, normally 15x110mm
Rear hub: 12x148 Boost
Front rim: 29inch (700C)
Rear rim:29inch(700C) and 27.5inch(650B) compatible
Front tire: 29x2.5 recommended, max to 2.6
Rear tire: 29x2.4/27.5x2.4 recommended, max to 2.6

Velduro Rogue - Frame Only

Riders wanted a frame only option - We listened!

SPECIFICATIONS FOR CUSTOM BUILD

Full Carbon Fibre Monocoque Frame

I-track's patented suspension system

Inudustry leading avinox-motor

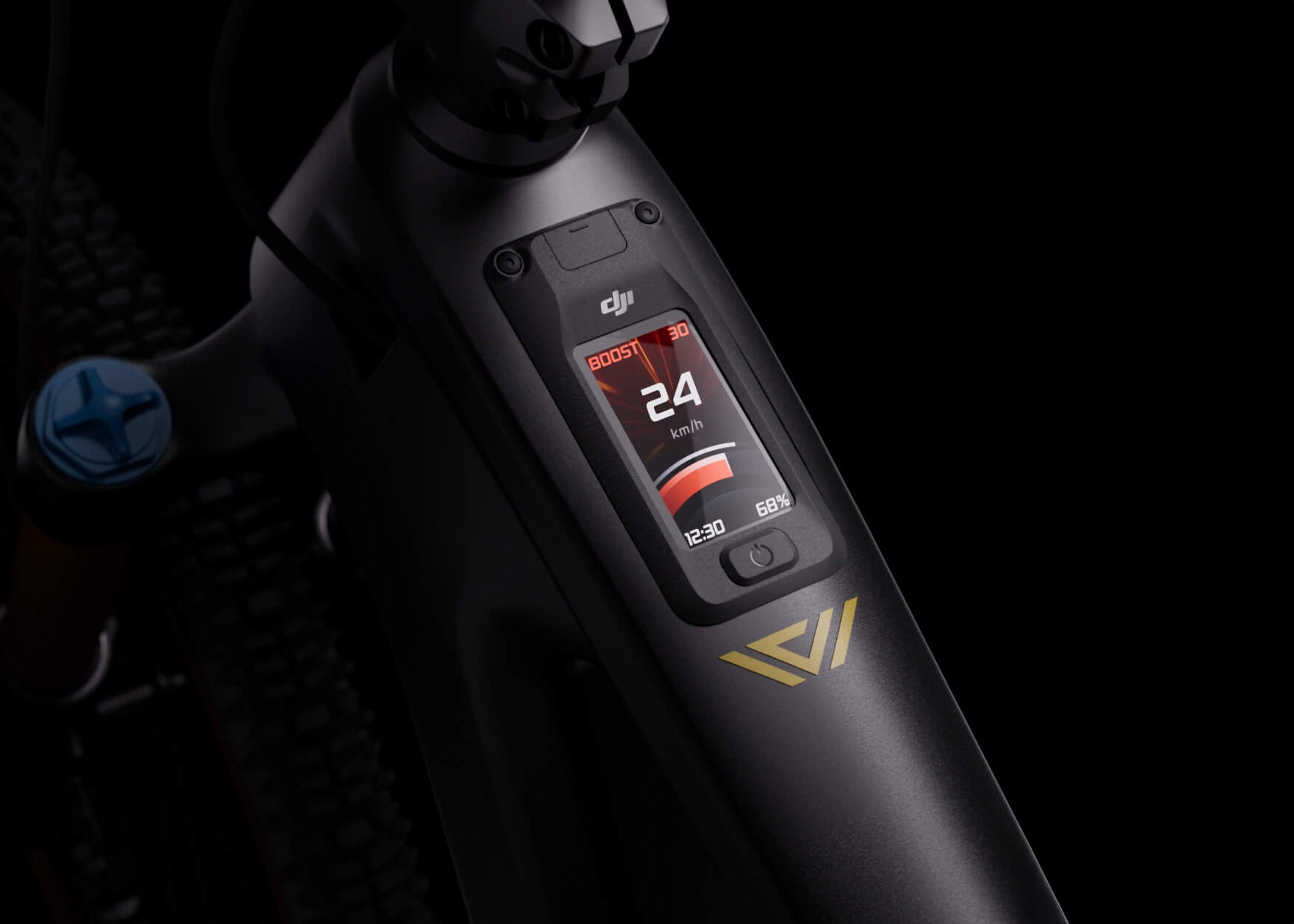

DJI Avinox 2" OLED Display

Velduro Rogue - Frame Only

Riders wanted a frame only option - We listened!

SPECIFICATIONS FOR CUSTOM BUILD

Full Carbon Fibre Monocoque Frame

I-track's patented suspension system

Inudustry leading avinox-motor

DJI Avinox 2" OLED Display
