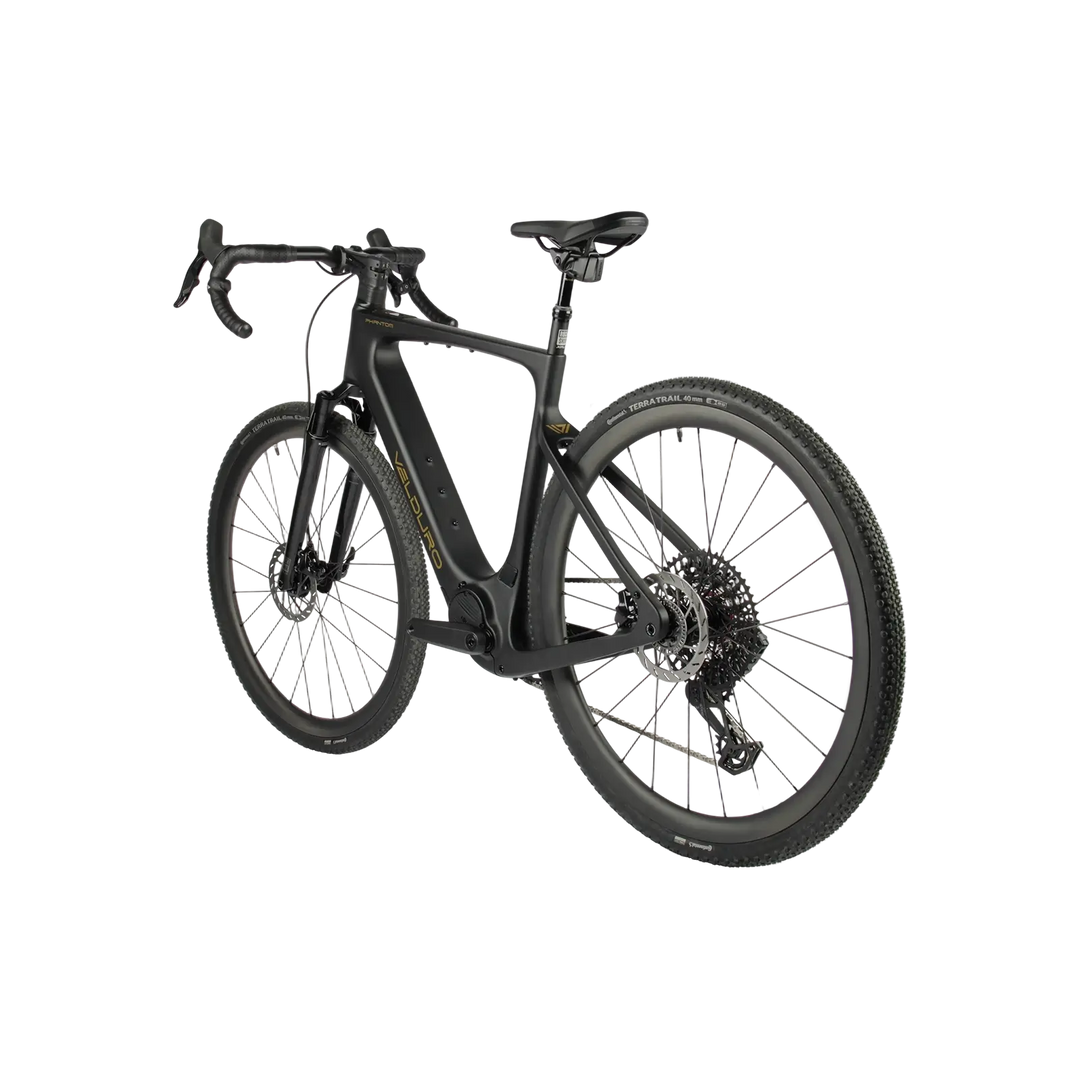

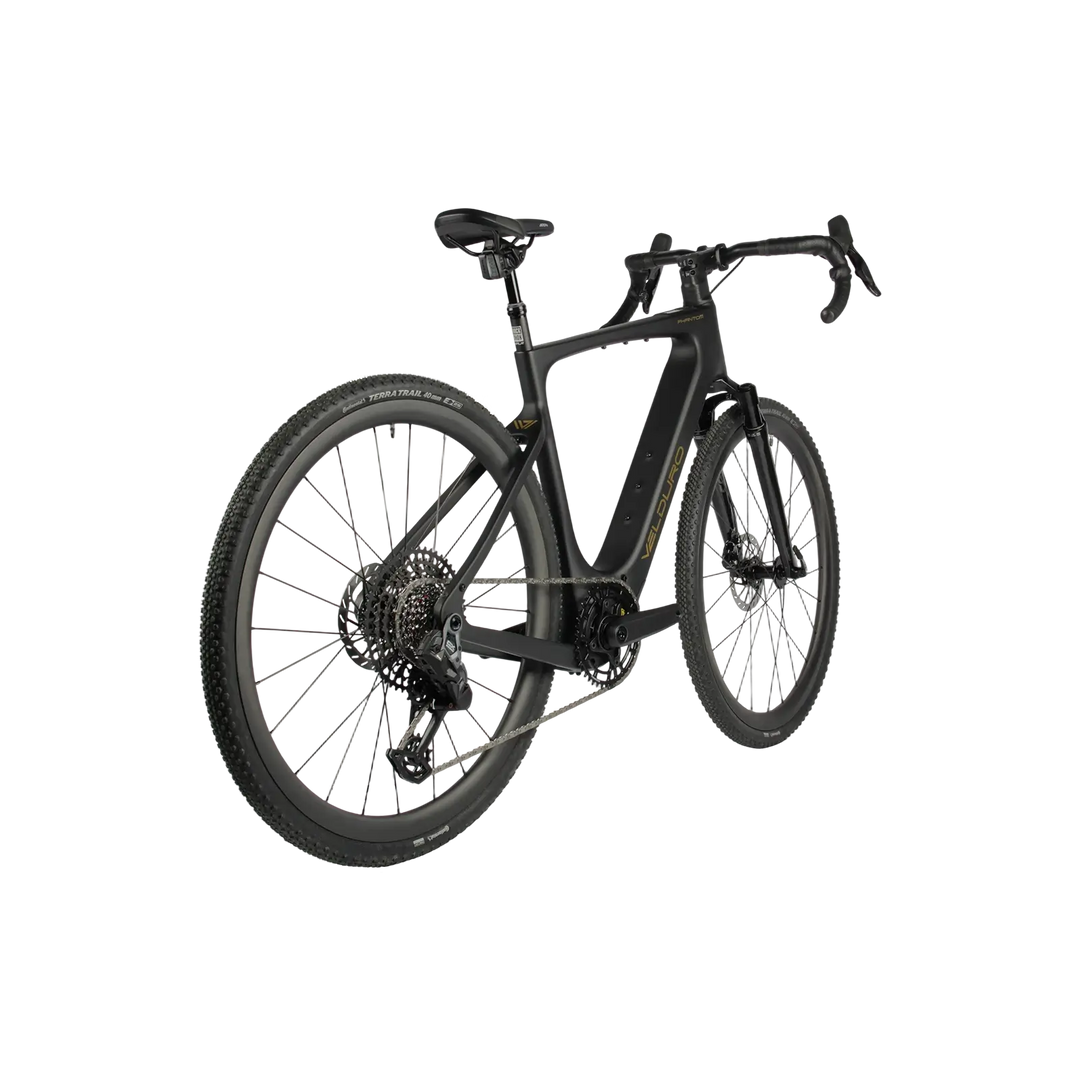

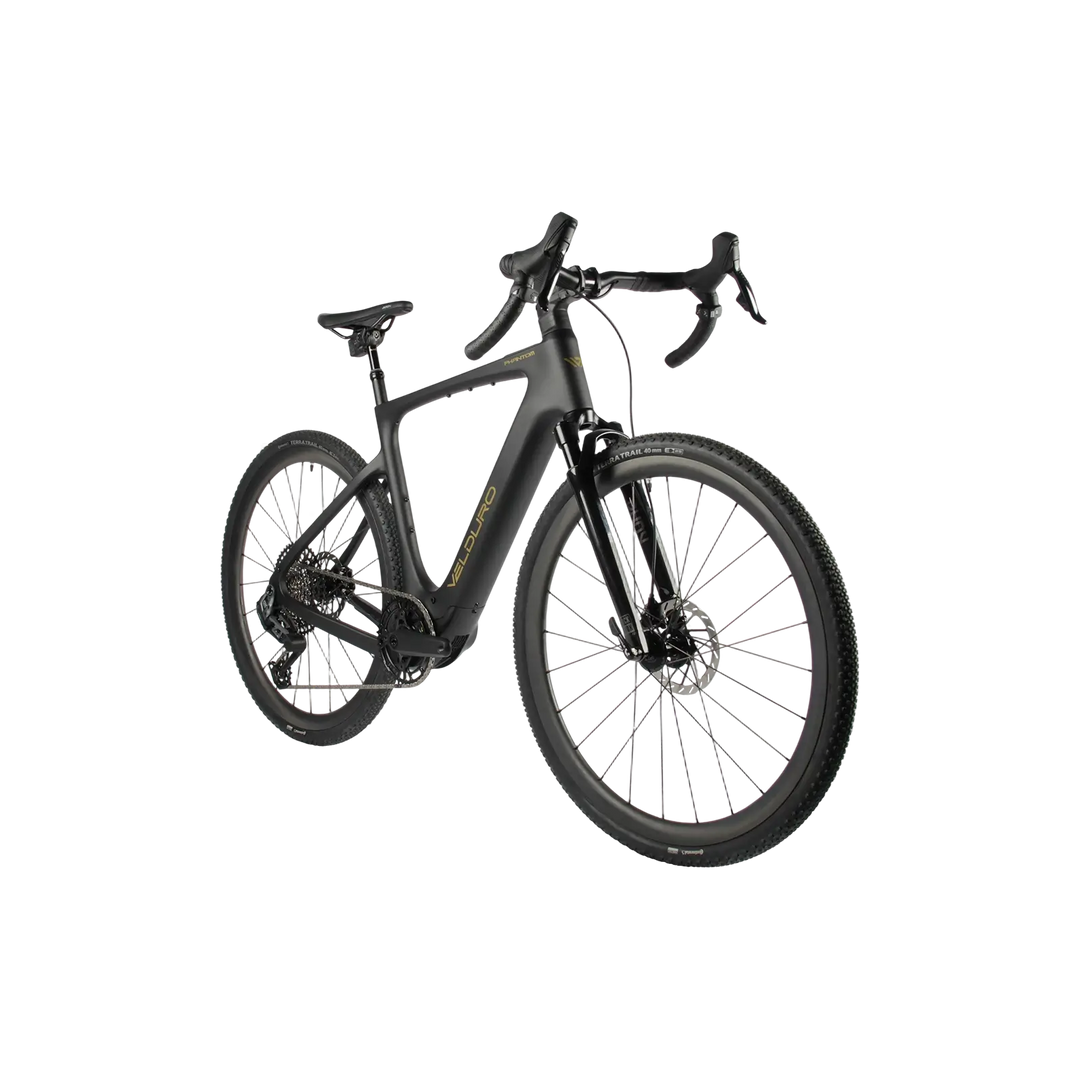

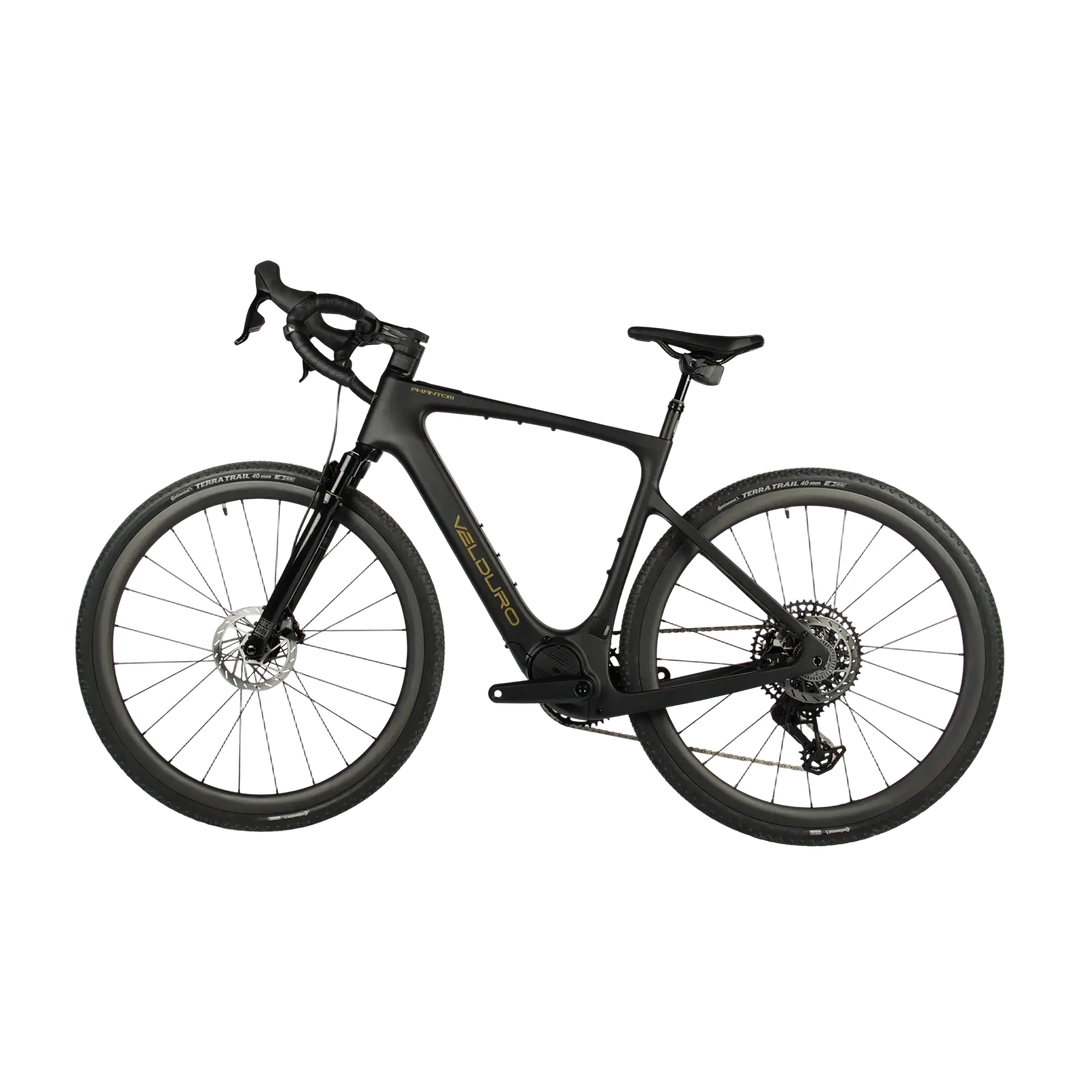

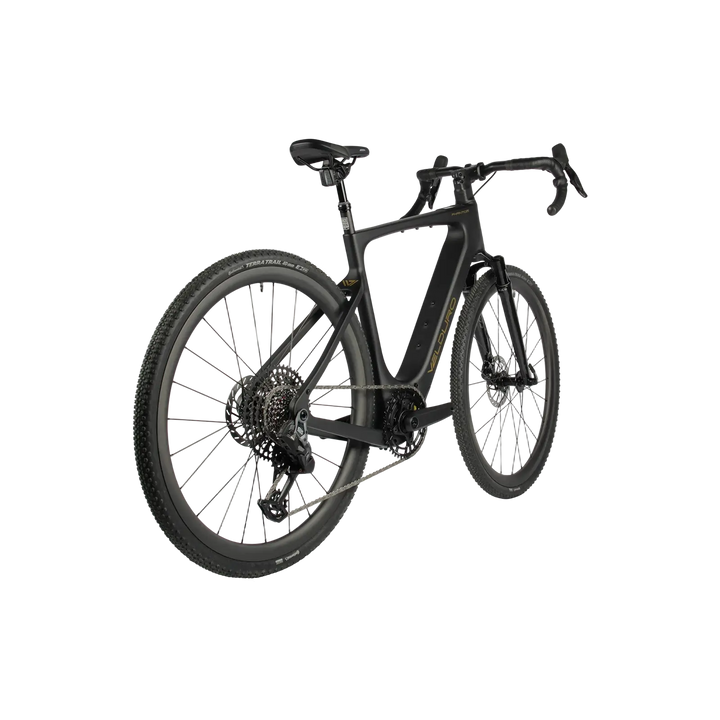

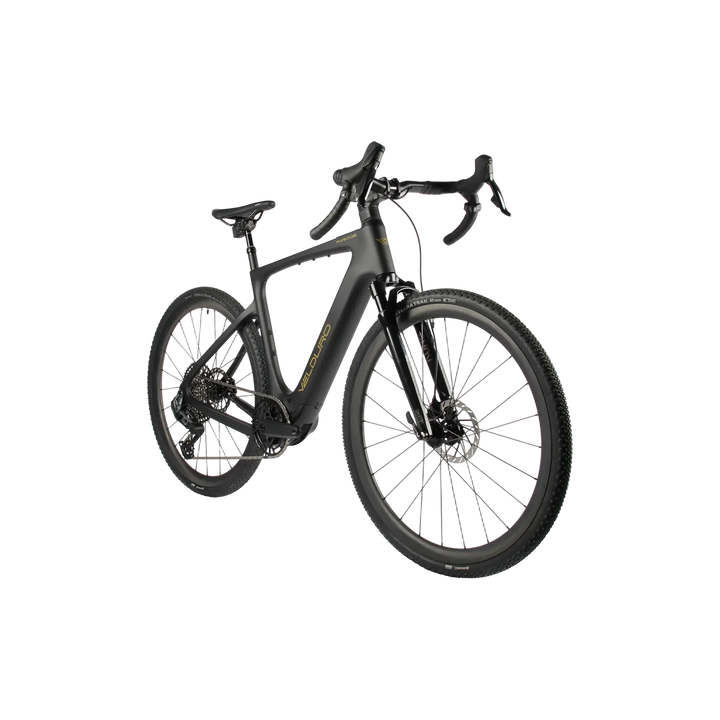

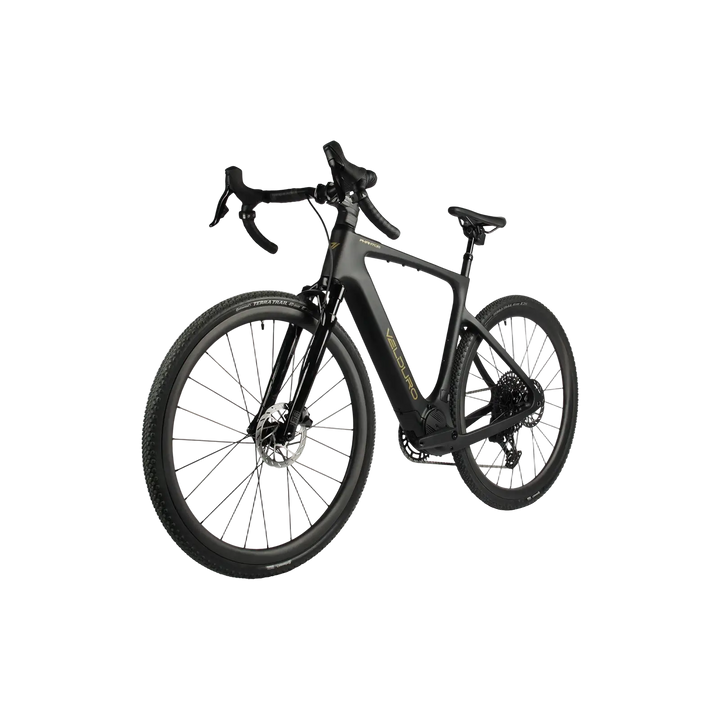

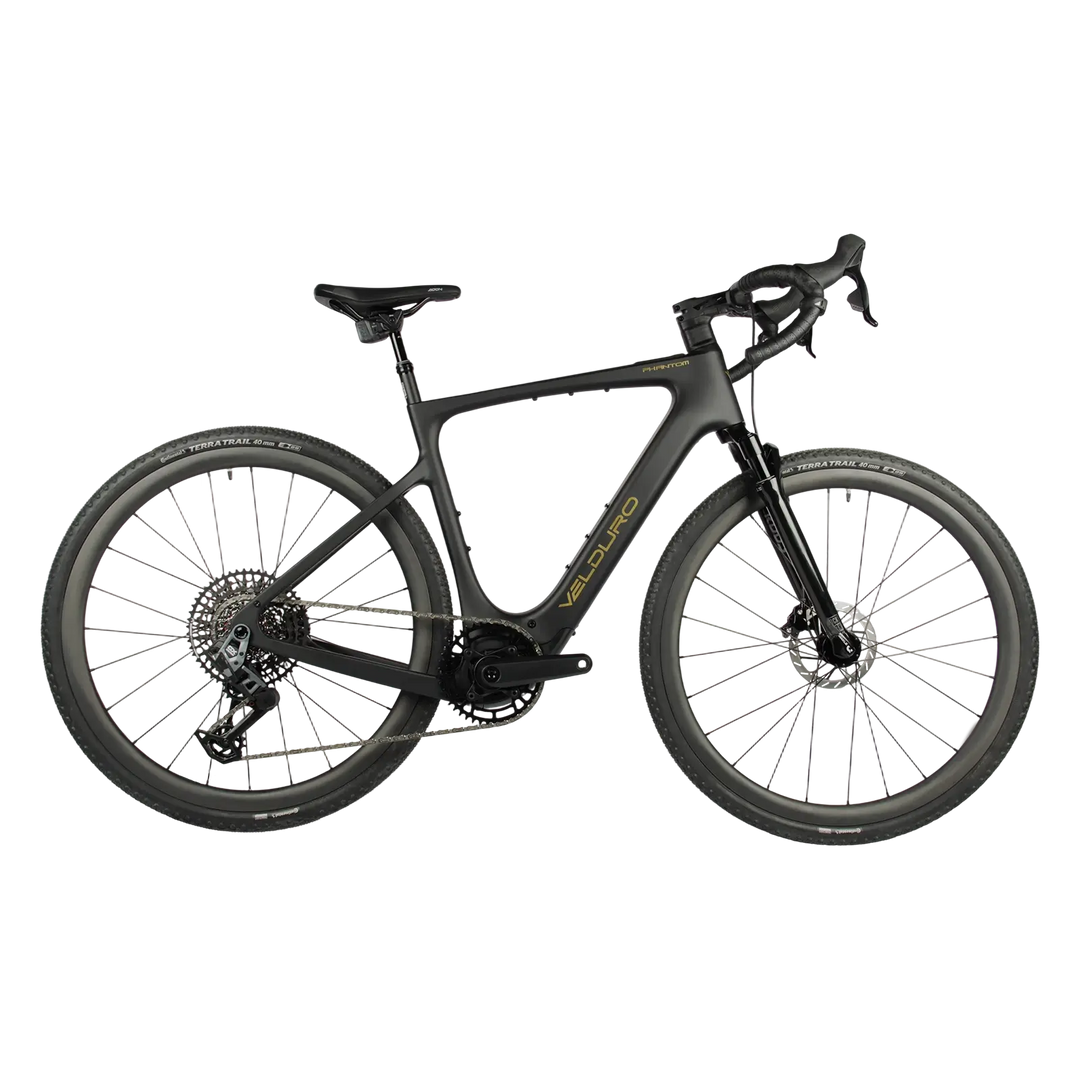

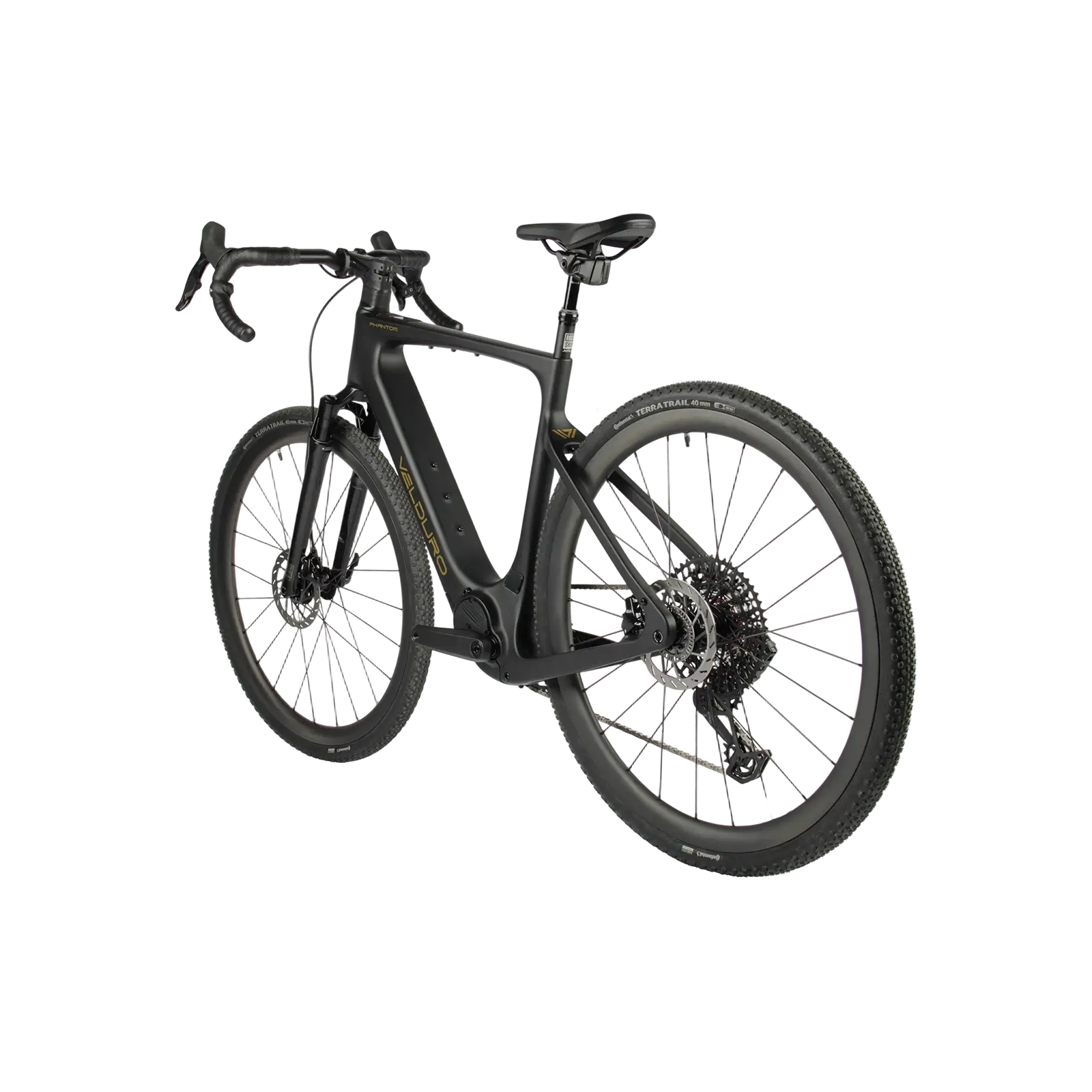

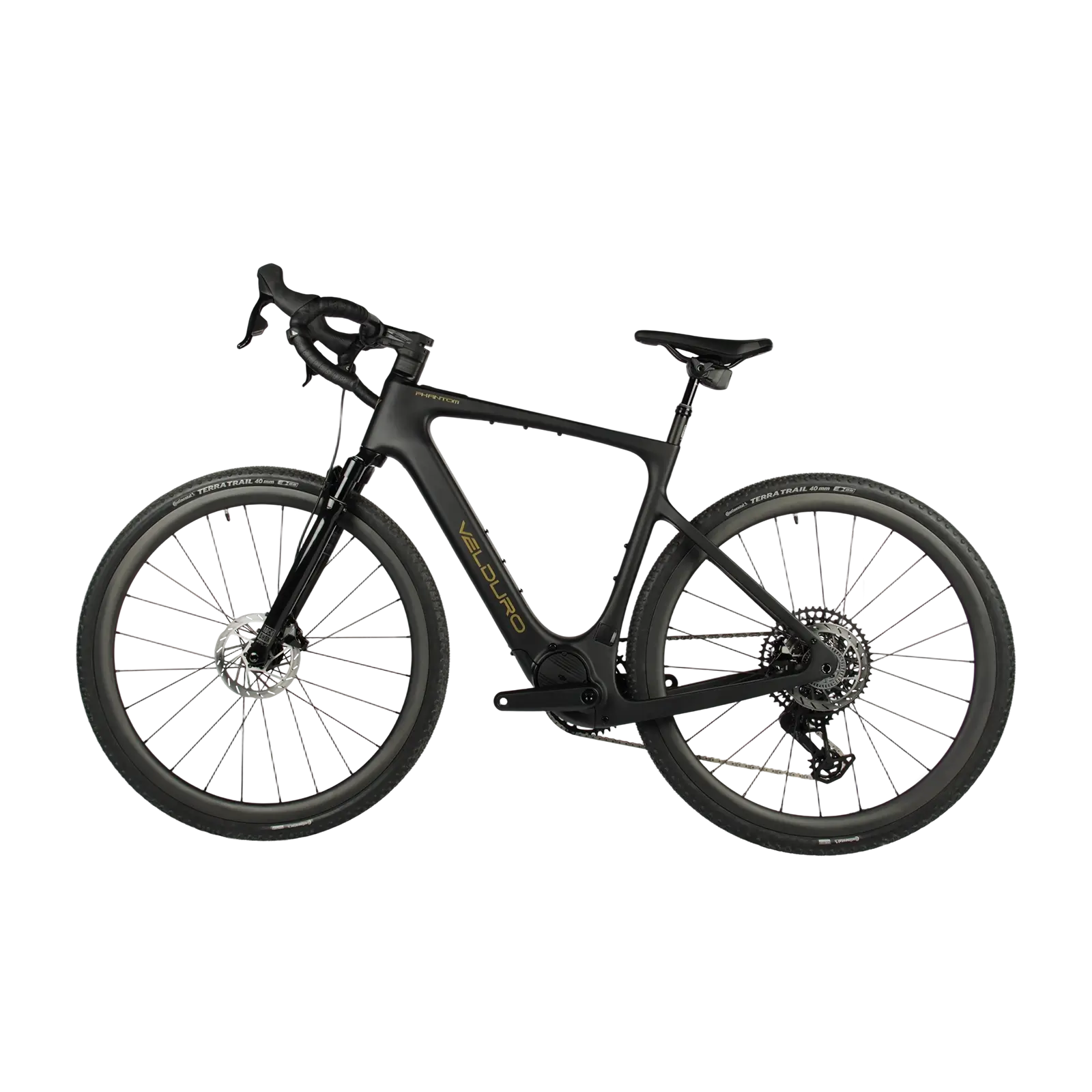

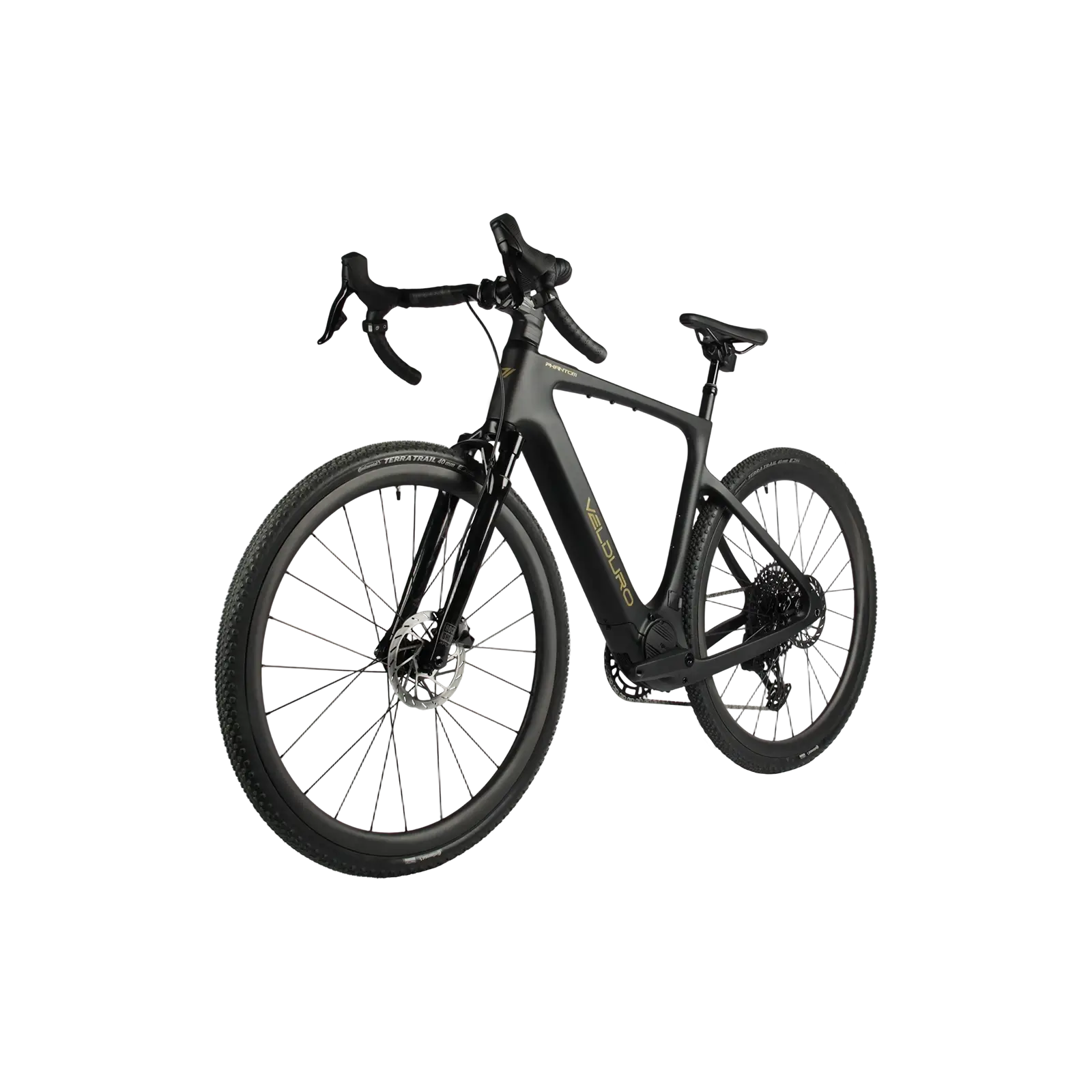

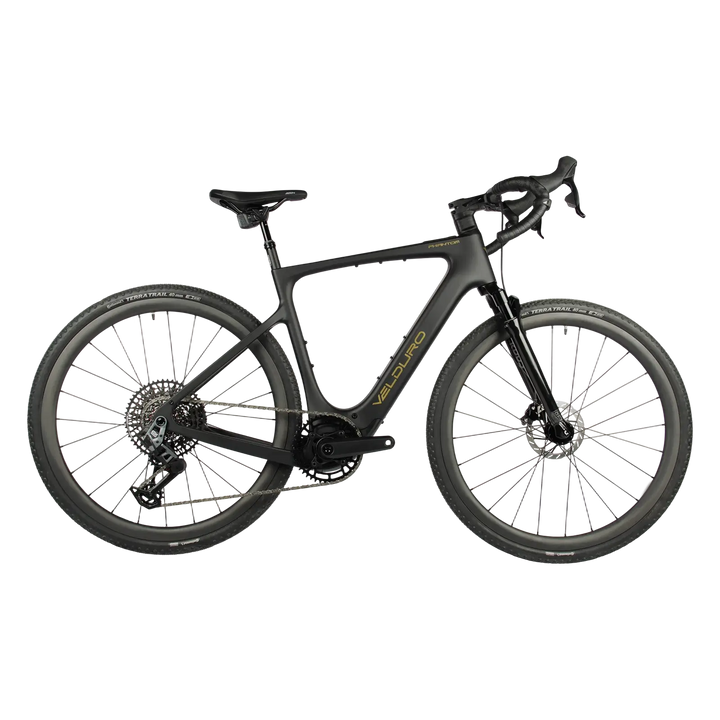

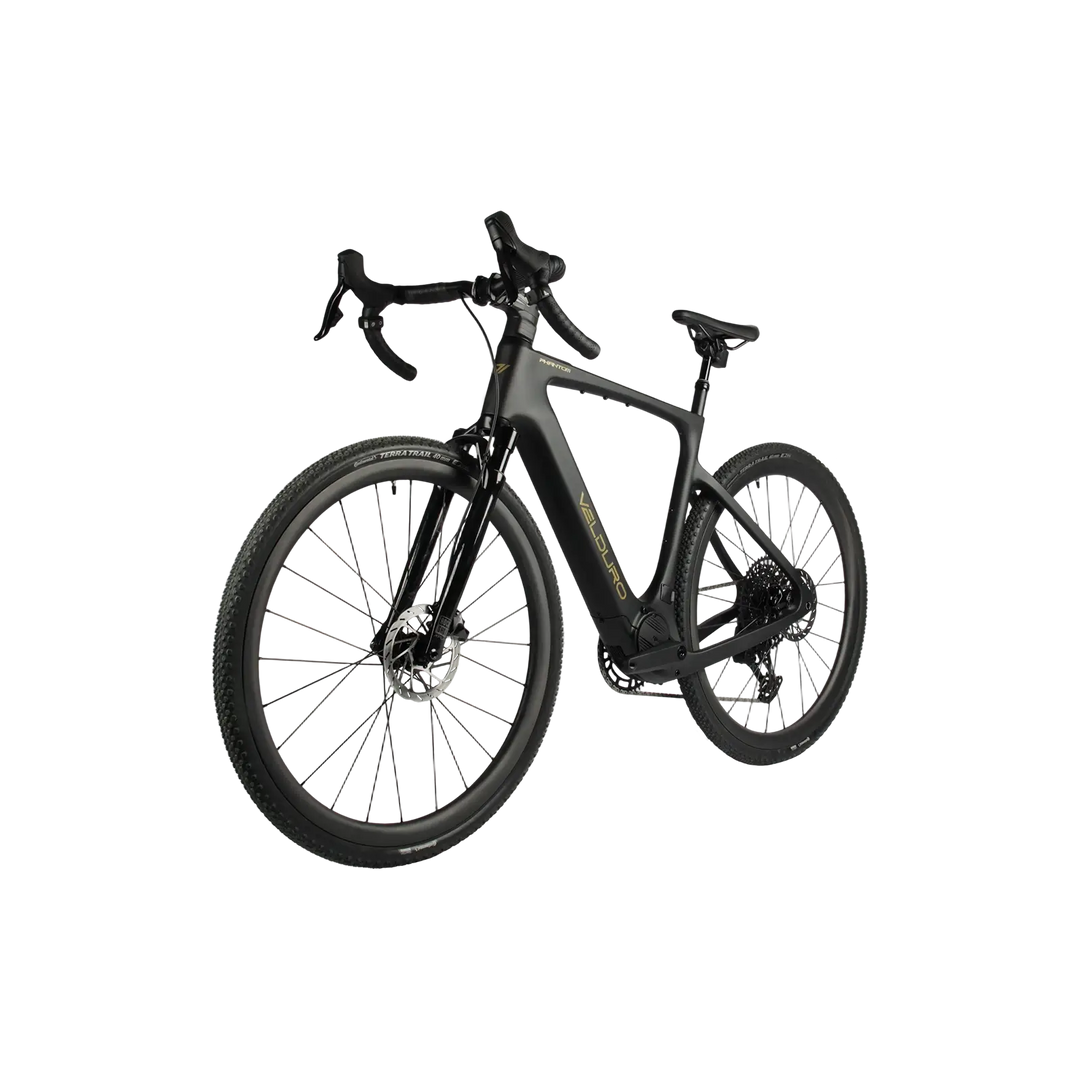

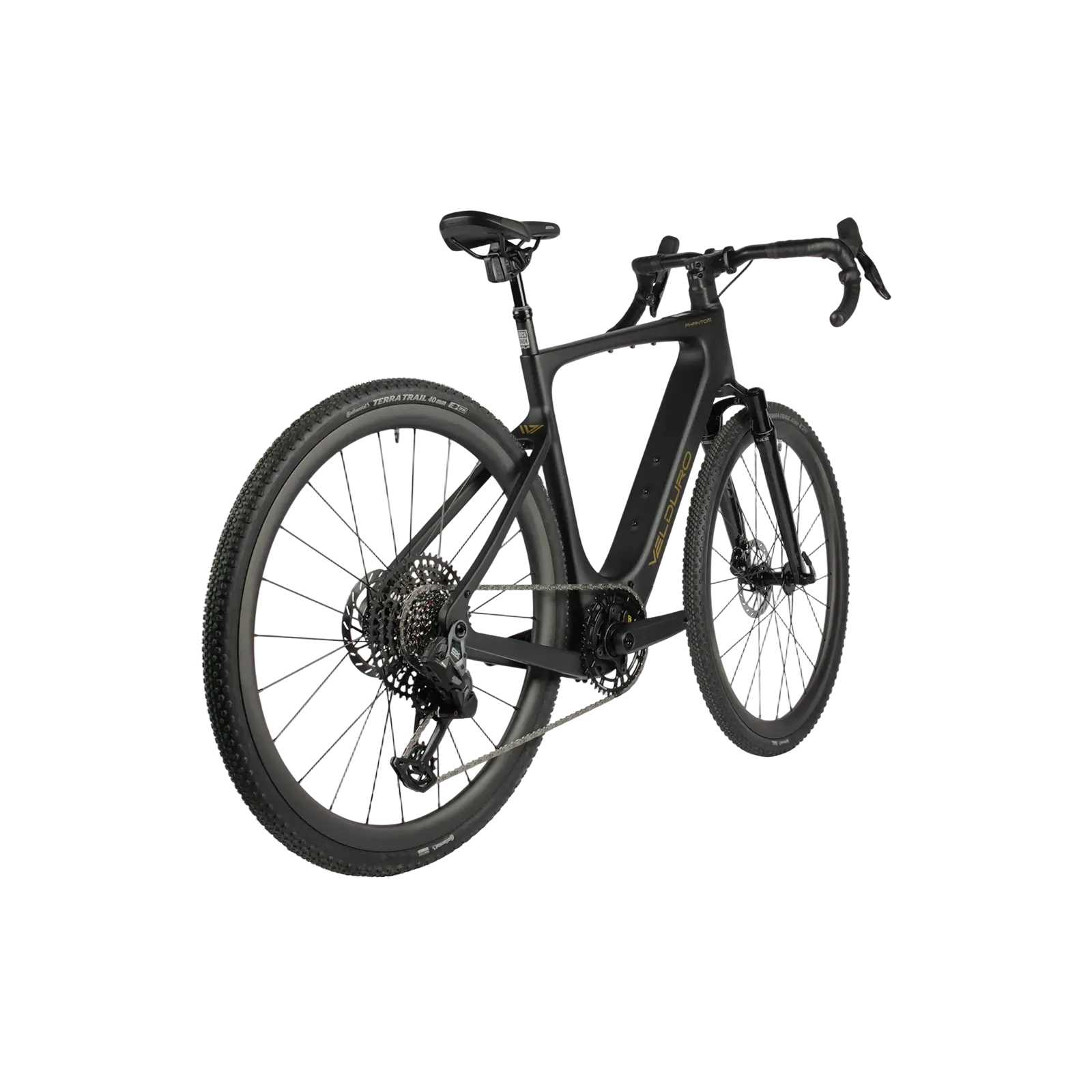

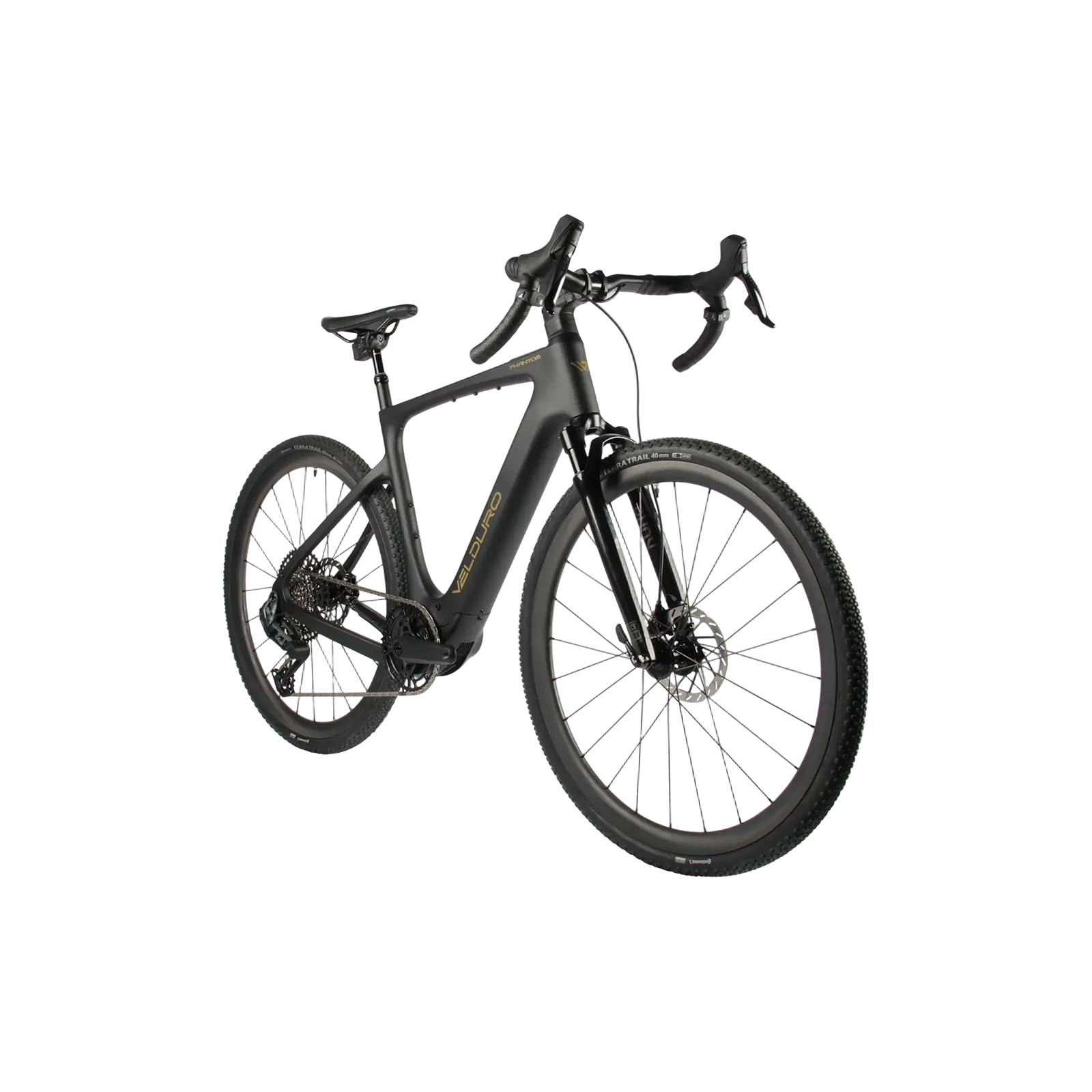

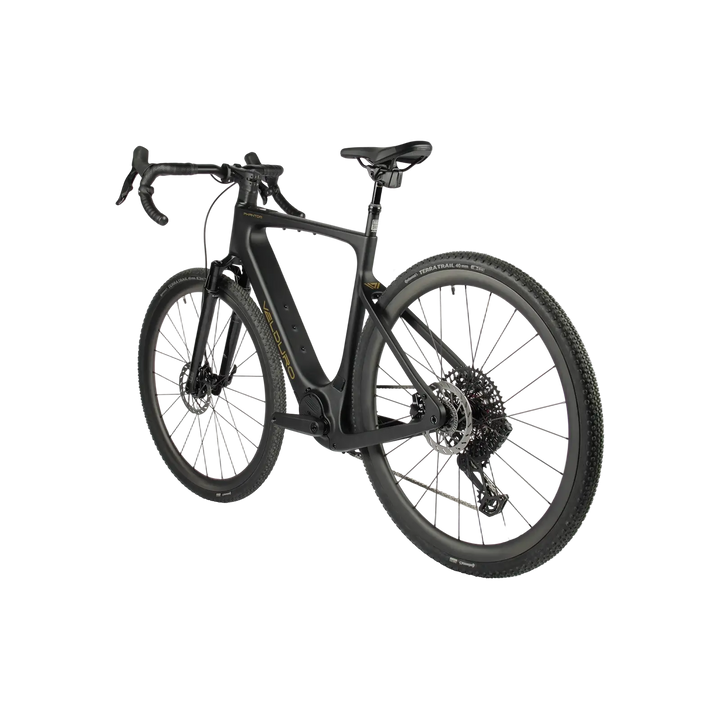

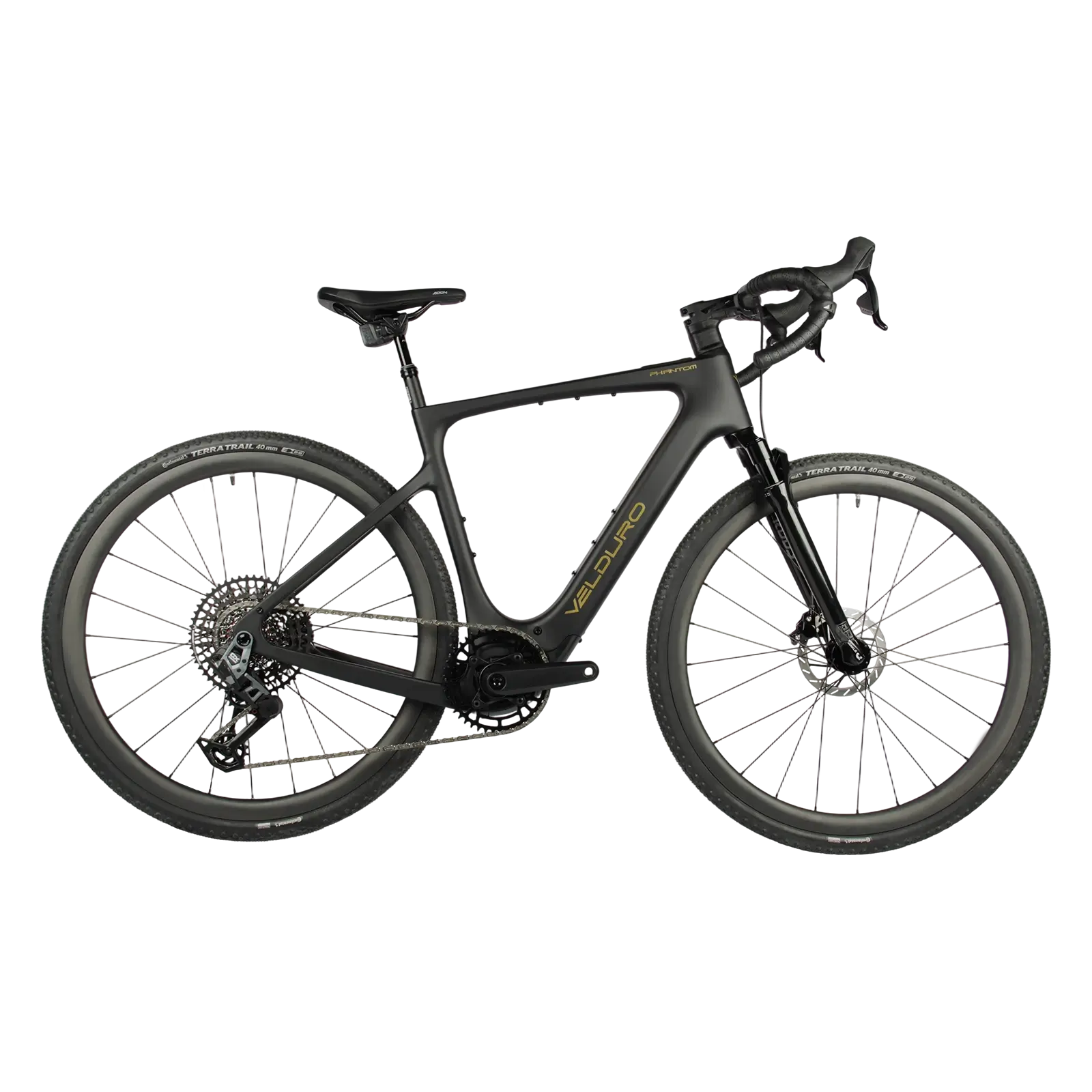

Name: Velduro Phantom R E-Gravel
Brand: Velduro Bikes
Price: 8999.0 NZD
Availability: OutOfStock

8,999.00 EUR

Shipping calculated at checkout.

*The Phantom R is only available in Europe at this stage.
The Phantom R is a gravel’s apex predator. Building on the X’s foundation, it adds a SRAM Rudy suspension fork (40mm travel) and Reverb AXS dropper post to dominate chunky descents and rock gardens. The monolith frame’s reinforced junctions handle suspension loads, while the Avinox system’s Boost mode provides explosive 120 Nm torque for steep, loose climbs. Wide 45c tires, and a 600Wh battery make it a self-sufficient beast for multi-day bikepacking races or back-country missions. This is the bike for riders who want it all.

In stock, ready to ship
Backordered, shipping soon

Size

Small

Medium

Large

Xtra Large

Geometry

Phantom E-Gravel Geometry
		S	M	L	XL
A	Seat Tube Length (mm)	466	486	506	526
B	Top Tube Horizontal (mm)	520	534	551	565
C	Top Tube Actual (mm)	495	515	534	548
D	Head Tube Angle (°)	70	70.5	71	71
E	Seat Tube Angle (°)	74.4	74.1	73.6	73.6
F	Standover (mm)	772	785	815	830
G	Head Tube Length (mm)	135	147	159	179
H	Wheelbase (mm)	1015	1019	1030	1040
I	Front Center (mm)	600	605	606	620
J	Chain Stay Length (mm)	425	425	430	430
K	Bottom Bracket Drop (mm)	72.5	72.5	72.5	72.5
L	Bottom Bracket Height (mm)	283	283	283	283
M	Fork Rake (mm)	50	50	50	50
N	Trail (mm)	64	63	63	63
O	Stack (mm)	554	567	581	600
P	Reach (mm)	366	372	377	385
Q	Axle to Crown (mm)	395	395	395	395
Recommended Height		160-170	172-182	180-188	185-195

Carbon Fibre Monocoque Frame

SRAM Rival ASX Electric Shifter

8 Mounting Points for Bike Packing

Warranty: Frame 5-Years | Avinox Drive System 2-Years

Liquid error (snippets/image-element line 113): invalid url input

[{"id":45029958287533,"title":"Small","option1":"Small","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Velduro Phantom R  E-Gravel - Small","public_title":"Small","options":["Small"],"price":899900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45029958320301,"title":"Medium","option1":"Medium","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Velduro Phantom R  E-Gravel - Medium","public_title":"Medium","options":["Medium"],"price":899900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45029958353069,"title":"Large","option1":"Large","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Velduro Phantom R  E-Gravel - Large","public_title":"Large","options":["Large"],"price":1399000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45029958385837,"title":"Xtra Large","option1":"Xtra Large","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Velduro Phantom R  E-Gravel - Xtra Large","public_title":"Xtra Large","options":["Xtra Large"],"price":1399000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}]

SPECIFICATIONS

Frame: Carbon fibre, gravel category, battery integrated, inner cable routing, 12X142mm, 8
mounting points, rack compatible
Fork: Rockshox Rudy ULT 40mm travel700 U GLB 41T A2
Headset: FSA NO.55R 1.5" / 558 ACR, Alloy gravel, dia top& bottom 52mm
Stem: FSA SMR Alloy -6° alloy Length S:70mm M:80mm, L:90mm, XL:100mm
Saddle: Fizik Terra Aidon X5
Seatpost: Rockshox Reverb AXS XPLR 27.250mm travel, 400mm length
Handlebar: Velduro Carbon, Dia31.8, Flare 15°, Width: S/M 420mm, L/XL: 440mm
Straps: Velduro black gravel strap

Brakes: Sram Rival AXS HRD Shift-Brake System
Discs: Srame HS2 extreme duty disc, front 160mm, rear 160mm
Rear derailleur: Sram Rival XPLR AXS Rear Derailleur with power cable
Cassette: Sram Rival XPLR XG-1351 13-speed Cassette
Cranks: Avinox SL 165mm
Chain: Sram Rival Transmission Flattop Chain
Spider: Avinox 104BCD spider
Chainwheel: Velduro customized alloy 44T, 3mm inward

Wheelset: Easton EC70 AX carbon gravel wheels, 24mm inner width, 21mm depth, XDR freehub
Tires: Maxxis Rambler 700*45C BLK, with tube

*Your Phantom is tubeless-ready, but comes with tubes.

Motor: Avinox M1 36V 105Nm 850W, boost to 120nm 1000W
Battery: Avinox 600Wh integrated
Display: Avniox DP100 integrated 2-inch display
Button: Avinox BC100 Wireless control left&right
Charger: Avinox 4A charger
Cables: Avinox customized Waterproof and foolproof wiring
